HR 8808

34.2 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

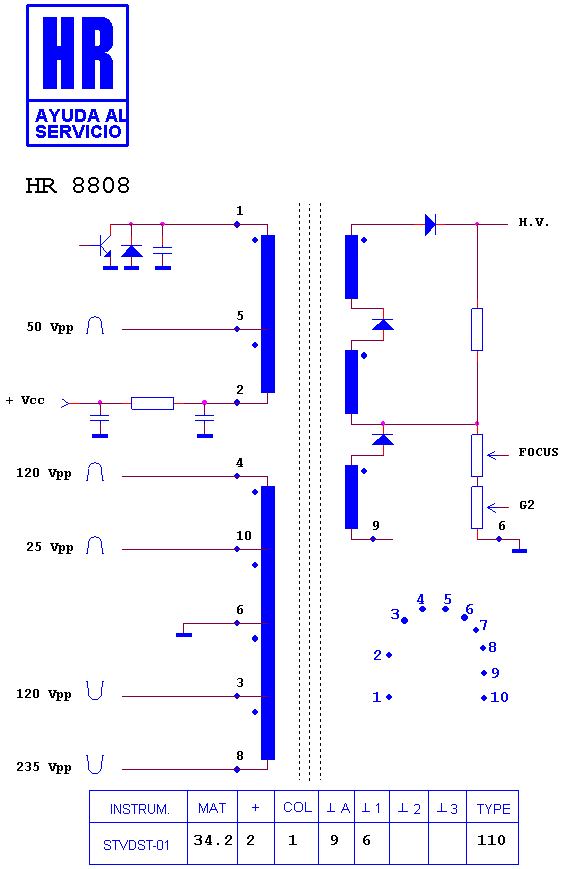

Schematic diagram for HR 8808
schematic (archived)

Manufacturer equivalents (1)

6174Z6012T

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7859 · HR 80081 · HR 8520 · HR 8801 · HR 80122 · HR 80126 · HR 8333 · HR 80057 · HR 8596 · HR 80052 · HR 8282 · HR 8949

Fitted to (4)

GOLDSTAR - LG CE 28 H 86 T · GOLDSTAR - LG CHASIS MC 007 A · GOLDSTAR - LG CT 25 Q 26 ET · GOLDSTAR - LG CT 29 Q 26 ET
