HR 80081

37.8 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

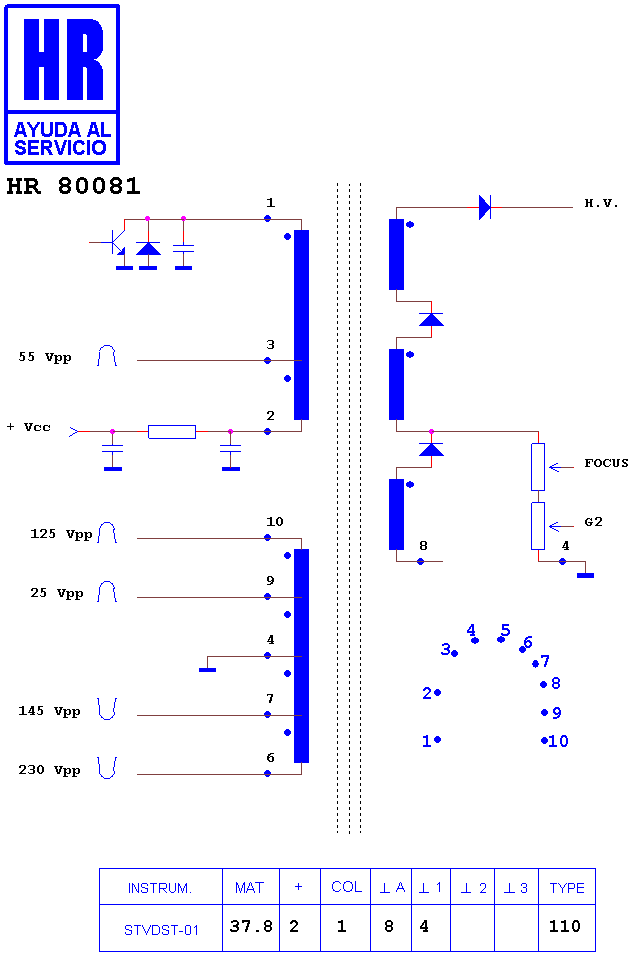

Schematic diagram for HR 80081
schematic (archived)

Manufacturer equivalents (6)

001-234151-10 · 001-234279-05 · 6174Z6229Z · 6174Z6279Z · BSC25-1079B · JF0101-0151

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8596 · HR 8892 · HR 8520 · HR 80126 · HR 80057 · HR 80130 · HR 80108 · HR 80122 · HR 6585 · HR 8149 · HR 8921 · HR 7497

Fitted to (1)

TEAC CTM 805 SR
