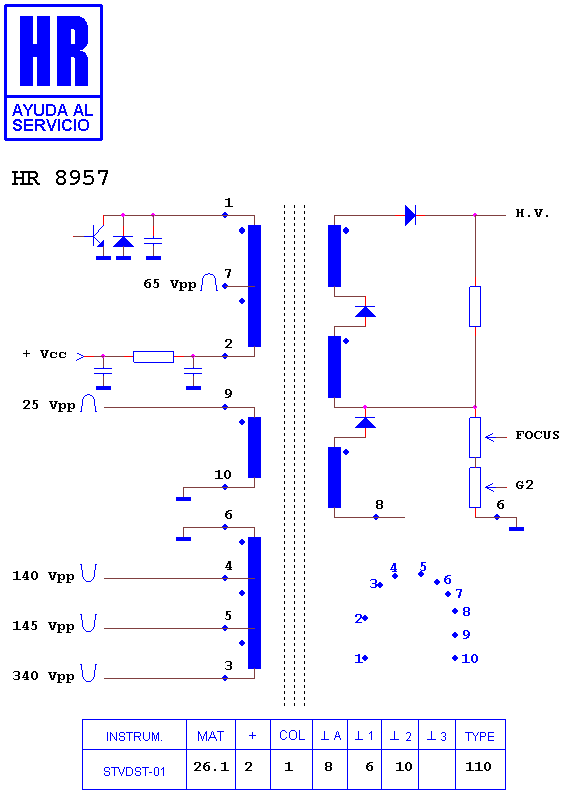

HR 8957

type ST · family 1VP2 · 26.1 kV maximum anode voltage · 110° deflection · 4 windings · 374 g

Manufacturer equivalents (3)

HR 8957 · PET 22-37 B · PET 40-04 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7992 · HR 8282 · HR 7959 · HR 8494 · HR 7974 · HR 6380 · HR 8614 · HR 8855 · HR 7221 · HR 8771 · HR 7121 · HR 8624

Fitted to (1)

OVP - ORAVA CTV 2540
