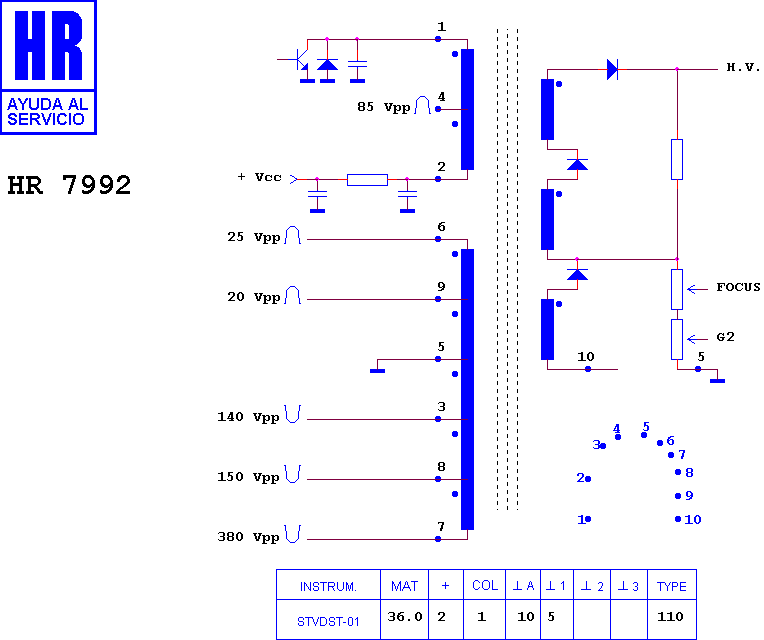

HR 7992

type ST · family 1YP · 36 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (4)

A 1201-0016 · AA 26-30001 T · FCR 25 A 013 · FCR 25 A 013 R

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8727 · HR 8957 · HR 7959 · HR 80056 · HR 8963 · HR 8494 · HR 7121 · HR 7364 · HR 8614 · HR 8624 · HR 7974 · HR 8416

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

SAMSUNG CI 6271 · SAMSUNG CI 6271 ZM · SAMSUNG CI 7230 · SAMSUNG CI 7230 ZN · SAMSUNG CI 7271 Z · SAMSUNG CI 7271 ZN · SAMSUNG CK 7271 · SAMSUNG CK 7271 AWB · SAMSUNG CX 7271 AN

Search this part in the full database
