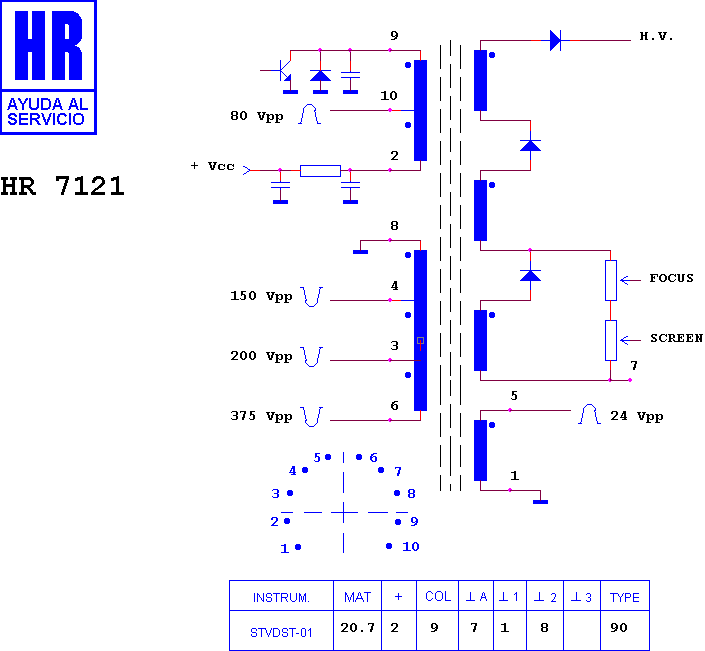

HR 7121

2 windings

Manufacturer equivalents (1)

HR 7121

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80221 · HR 8624 · HR 7023 · HR 6459 · HR 80019 · HR 8855 · HR 6461 · HR 7620 · HR 7452 · HR 7819 · HR 8771 · HR 8416

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

ELBE TVC 2190
