HR 7819

type ST · family 1XP1 · 19.7 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

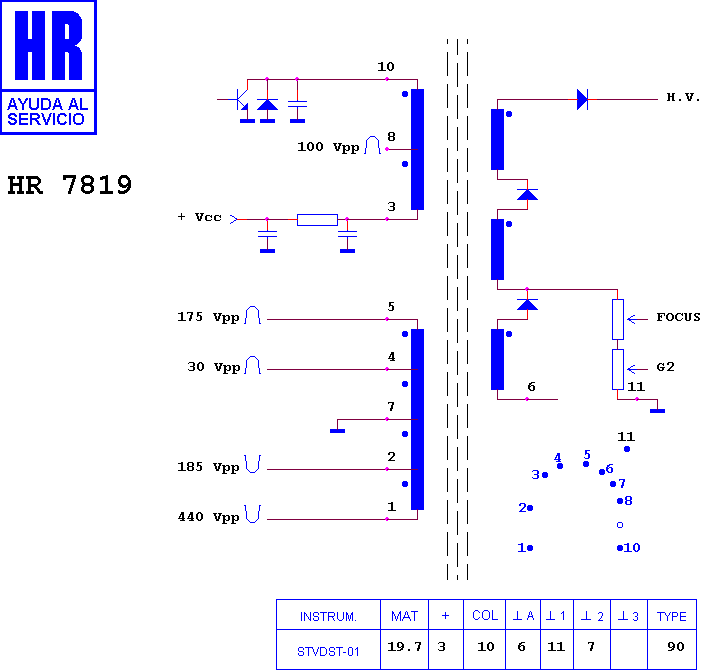

Schematic diagram for HR 7819
schematic

Manufacturer equivalents (6)

CF 0321 · CF 0441 · FAT30204 · KN30204 · LCE CF 0321 · LCE CF 0441

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7607 · HR 7646 · HR 7620 · HR 7452 · HR 7968 · HR 7922 · HR 7661 · HR 7121 · HR 8161 · HR 80221 · HR 8006 · HR 7480

Fitted to (7)

CONDOR CTV 1401 · ELTA 2018 · INTERVISION CTV 3730 II · LIFETECH LT 9837 · LIFETECH MONITOR · STARLUX CP 3791 · STARLUX FB 58
