HR 7968

type ST · family 1YP · 23.5 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

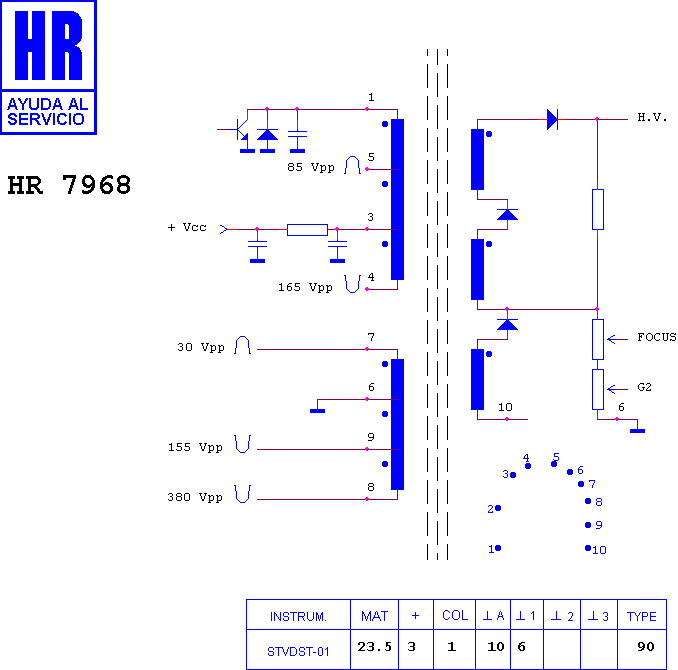

Schematic diagram for HR 7968
schematic

Manufacturer equivalents (6)

AA 26-30002 K · AA26-30004Z · FTH 29 A 001 · FTH 29 A 001 H · FTH 29 A 001 S · FTH29A001H(S)

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8858 · HR 7474 · HR 7819 · HR 7609 · HR 7422 · HR 8781 · HR 7646 · HR 7023 · HR 7922 · HR 6016 · HR 7452 · HR 7607

Fitted to (43)

SAMSUNG 20 B 46 · SAMSUNG 686 ST · SAMSUNG 7202 WB · SAMSUNG CHASIS SCT 12 B · SAMSUNG CK 6202 WT · SAMSUNG CS 7207 · SAMSUNG CT 6346 VC · SAMSUNG CT 6346 WC · SAMSUNG CT 6846 VC · SAMSUNG CT 6846 WC · SAMSUNG CX 593 CN · SAMSUNG CX 593 CW · SAMSUNG CX 5937 N · SAMSUNG CX 5937 N/UKVCX · SAMSUNG CX 5937 W · SAMSUNG CX 5937 W/UKVCX · SAMSUNG CX 5944 N · SAMSUNG CX 5944 N/UKVCX · SAMSUNG CX 5944 W · SAMSUNG CX 5944 W/UKVCX · SAMSUNG CX 623 CN · SAMSUNG CX 623 CW · SAMSUNG CX 6237 N · SAMSUNG CX 6237 N/UKVCX · SAMSUNG CX 6237 W · SAMSUNG CX 6237 W/UKVCX · SAMSUNG CX 683 CN · SAMSUNG CX 683 CW · SAMSUNG CX 6837 N · SAMSUNG CX 6837 N/UKVCX · SAMSUNG CX 6840 N · SAMSUNG CX 6840 W · SAMSUNG CX 6844 N · SAMSUNG CX 6844 N/UKVCX · SAMSUNG CX 703 CN · SAMSUNG CX 703 CW · SAMSUNG CX 7037 N · SAMSUNG CX 7037 N/UKVCX · SAMSUNG CXD 2512 I · SAMSUNG TGX 633 · SAMSUNG TV 686 ST · SAMSUNG TXG 2545 · SAMSUNG TXG 633
