HR 7922

type ST · family 1XP1 · 20.6 kV maximum anode voltage · 90° deflection · 3 windings · 300 g

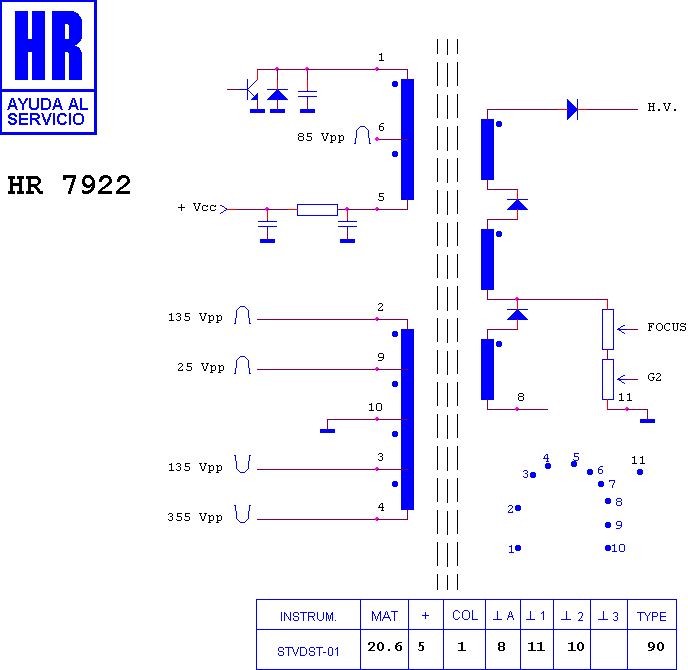

Schematic diagram for HR 7922
schematic

Manufacturer equivalents (8)

1142.5088 · 1142.50882 · 1142.5088A · 2181105 · 425 766 · 445615 · AFS 351 · FAT30748

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7480 · HR 7136 · HR 7661 · HR 7422 · HR 7611 · HR 8161 · HR 7474 · HR 7609 · HR 7968 · HR 8781 · HR 7607 · HR 80221

Fitted to (4)

BELSTAR 2155 T · BELSTAR CHASIS E 9 · GORENJE CHASIS E 9 90§ · UNIVERSUM FT 4289
