HR 7677

type ST · family 1YP · 25.6 kV maximum anode voltage · 90° deflection · 4 windings · 375 g

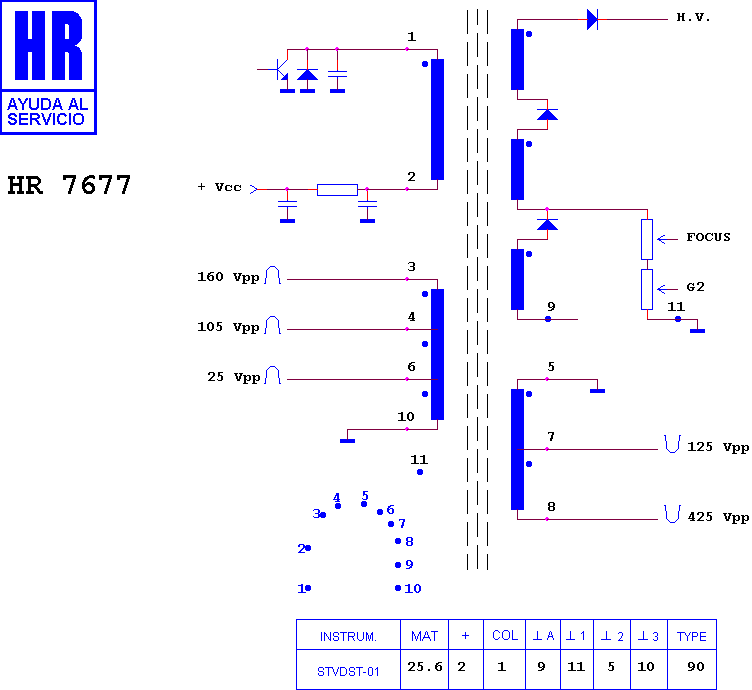

Schematic diagram for HR 7677
schematic

Manufacturer equivalents (5)

154 050 A · 2859 154 050 · 32859 154 050 · FCR 2615 AL · TLF 70152

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7451 · HR 7661 · HR 7639 · HR 8006 · HR 8161 · HR 7480 · HR 7922 · HR 8445 · HR 7611 · HR 7649 · HR 7136 · HR 8847

Fitted to (2)

SAMSUNG CB 667 · SAMSUNG CB 677
