HR 7611

type ST · family 1XP1 · 21 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

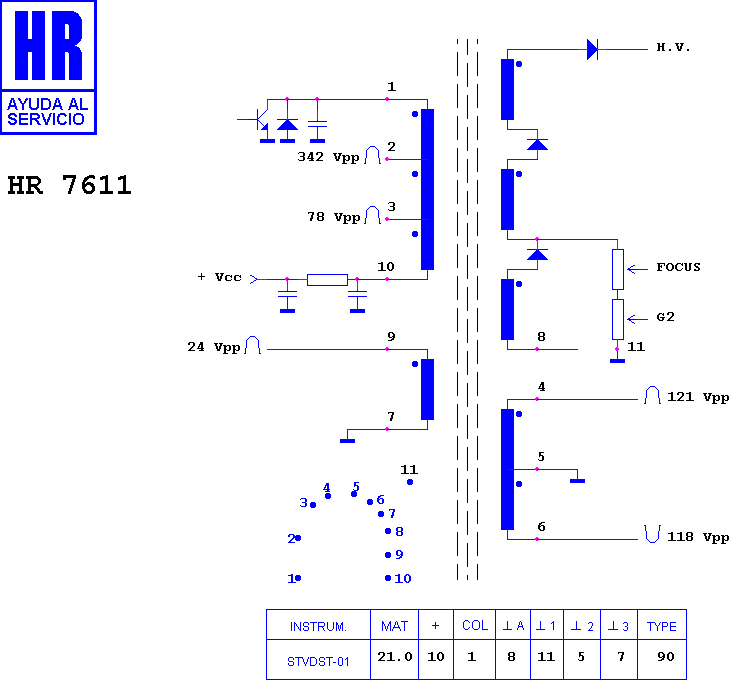

Schematic diagram for HR 7611
schematic

Manufacturer equivalents (8)

140 17029 · 3842-3 · 3842-4 · 38420 · 38421 · 38422 · 4806 140 17029 · TVC/37

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7649 · HR 7422 · HR 7609 · HR 7677 · HR 7607 · HR 7968 · HR 7136 · HR 8858 · HR 7474 · HR 80221 · HR 7023 · HR 80019

Fitted to (28)

PHILIPS 14 GL 1011 · PHILIPS 14 GL 1012 · PHILIPS 14 GL 1031 · PHILIPS 14 GL 1032 · PHILIPS 14 GL 1311 · PHILIPS 14 GL 1312 · PHILIPS 14 GL 1331 · PHILIPS 14 GL 1411 · PHILIPS 14 GL 1420 · PHILIPS 16 GL 1011 · PHILIPS 16 GL 1031 · PHILIPS 16 GL 1032 · PHILIPS 16 GL 1311 · PHILIPS 16 GL 1331 · PHILIPS 16 GL 1332 · PHILIPS 16 GL 1411 · PHILIPS 20 GL 1011 · PHILIPS 20 GL 1031 · PHILIPS 20 GL 1032 · PHILIPS 20 GL 1041 · PHILIPS 20 GL 1042 · PHILIPS 20 GL 1311 · PHILIPS 20 GL 1331 · PHILIPS 20 GL 1341 · PHILIPS 20 GL 1342 · PHILIPS 20 GL 1411 · PHILIPS 21 GL 1451 · PHILIPS CHASIS GR 1 AL 2¦ VERSAO
