HR 7609

type ST · family 1XP1 · 21.3 kV maximum anode voltage · 90° deflection · 4 windings · 282 g

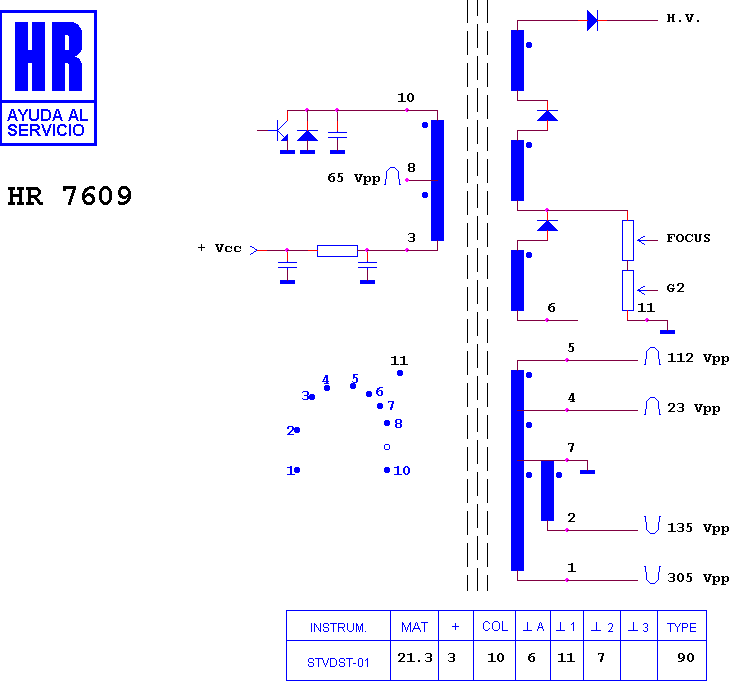

Schematic diagram for HR 7609
schematic

Manufacturer equivalents (2)

KFS 60506 · KFS 60506 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7474 · HR 7422 · HR 7646 · HR 7452 · HR 7968 · HR 7148 · HR 8781 · HR 7023 · HR 7149 · HR 7668 · HR 7221 · HR 7789

Fitted to (4)

ANS 2093 · TEC 5167 VR · TELETECH TVC 20" · YOKO YCT 2069
