HR 8781

23.1 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

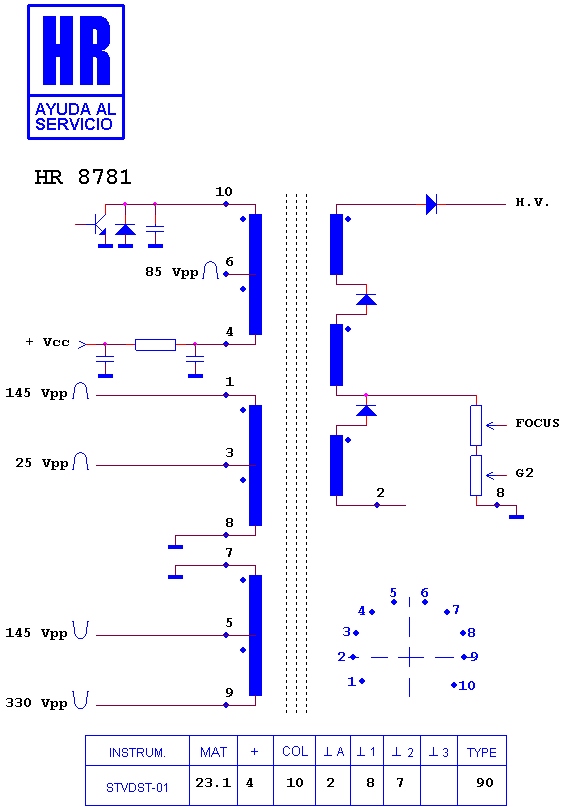

Schematic diagram for HR 8781
schematic (archived)

Manufacturer equivalents (3)

FB3082 · FCC064 · TRNSFB3082

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7968 · HR 5738 · HR 7221 · HR 7607 · HR 7637 · HR 7858 · HR 7474 · HR 7422 · HR 7609 · HR 7023 · HR 7922 · HR 7646

Fitted to (4)

MIS CTV 51 · MTO CTV 51 · VCR CR 2060 Z · VCR SCP-CR 2060 Z

Search this part in the full database
