HR 7646

type ST · family 1XP1 · 19.9 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

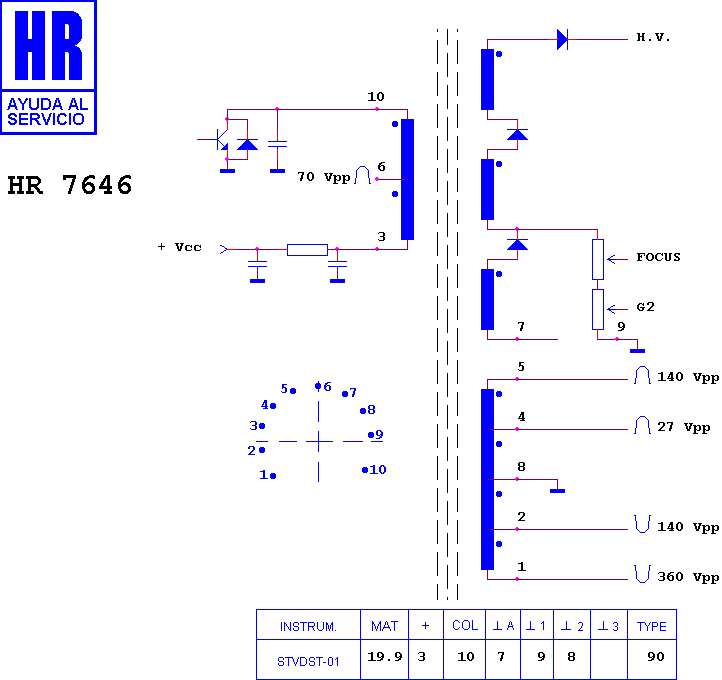

Schematic diagram for HR 7646
schematic

Manufacturer equivalents (2)

2032/03 · 2032/0B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7609 · HR 7607 · HR 7422 · HR 7620 · HR 7474 · HR 7452 · HR 7819 · HR 7922 · HR 7968 · HR 8161 · HR 7480 · HR 7611

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
