HR 7620

type ST · family 1XP1 · 21.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

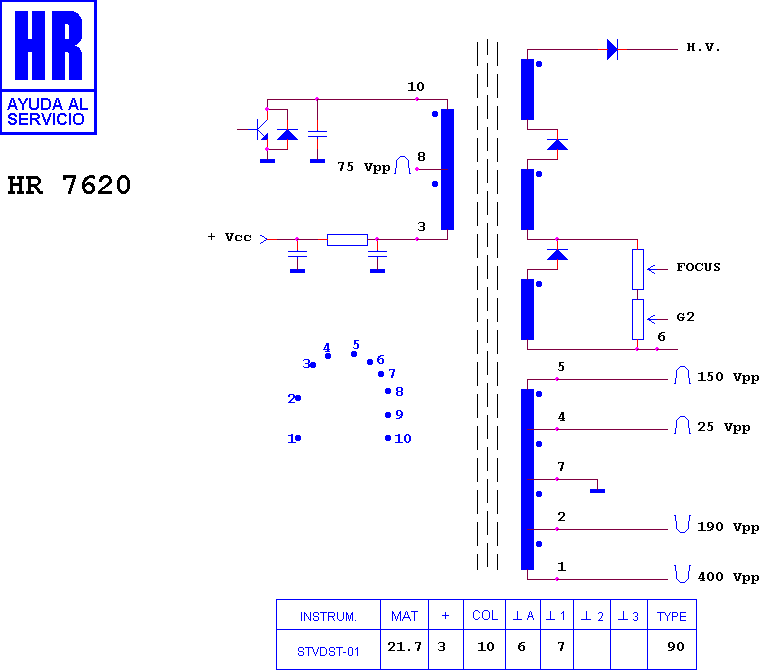

Schematic diagram for HR 7620
schematic

Manufacturer equivalents (4)

154 164 A · 410-0755 · 5908-05012A-AA · 5911-05012A-AA

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7607 · HR 7422 · HR 7452 · HR 7646 · HR 7819 · HR 80019 · HR 7968 · HR 80016 · HR 7121 · HR 80221 · HR 7661 · HR 8161

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

FIRST LINE 1433 GR · FUJITSU GENERAL FG 1441
