HR 7480

type ST · family 1XP1 · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

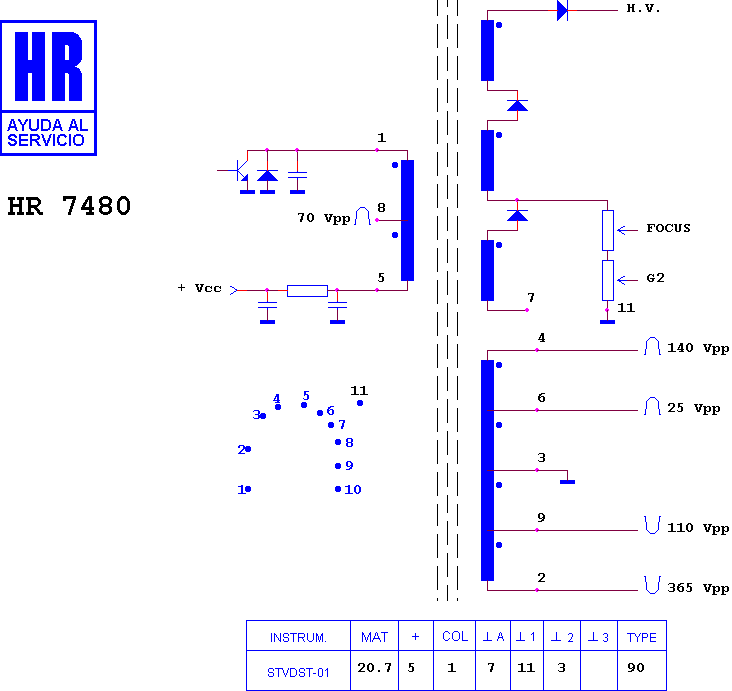

Schematic diagram for HR 7480
schematic

Manufacturer equivalents (4)

5730011 · 5830011 · 5830011A · BSC22-0316

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7661 · HR 7922 · HR 8161 · HR 8847 · HR 7607 · HR 7611 · HR 7677 · HR 8069 · HR 8858 · HR 7620 · HR 7609 · HR 7422
