HR 8972

24.1 kV maximum anode voltage · H° deflection · 4 windings · 474 g

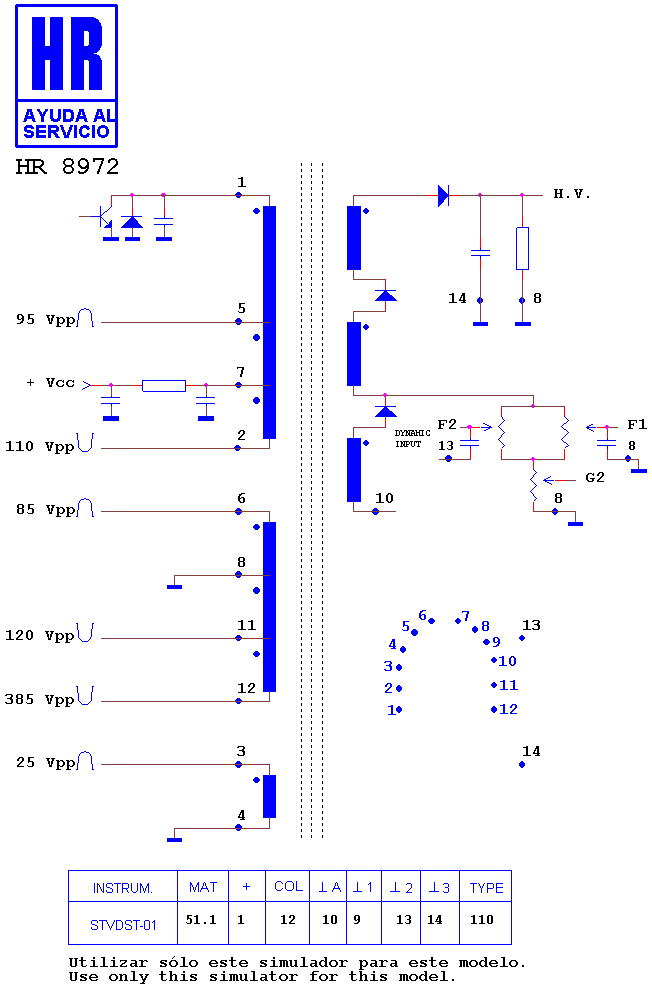

Schematic diagram for HR 8972
schematic (archived)

Manufacturer equivalents (4)

1372.8016 · 1372.8016A · 45360089 · HR 8972

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8903

Fitted to (11)

FINLUX TW 72 X 8 · FINLUX TW 82 F 8 · FINLUX TW 82 R 3 · FINLUX TZ 82 R 3 · FINLUX TZ 82 X 8 · MEDION CHASIS MC 2 B · SALORA 82 R 3 · SALORA CHASIS MC 2 B · SALORA TW · SALORA TZ 82 R 3 · THOMSON 37 DF 640 G
