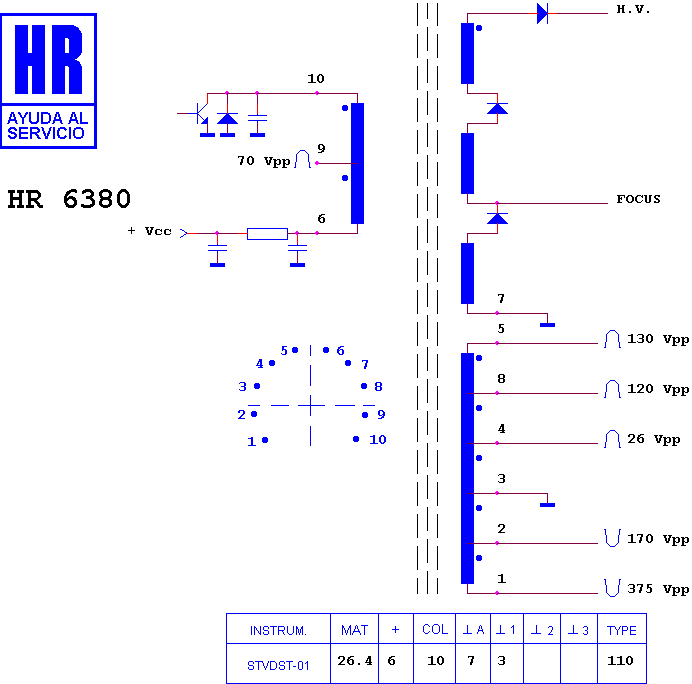

HR 6380

type ST · family 1BS2 · 26.4 kV maximum anode voltage · 110° deflection · 3 windings · 392 g

Manufacturer equivalents (1)

154 040 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7480 · HR 8494 · HR 8771 · HR 7779 · HR 7364 · HR 7121 · HR 8957 · HR 8624 · HR 7974 · HR 6420 · HR 8855 · HR 8614

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

LG - GOLDSTAR CMT 9202
