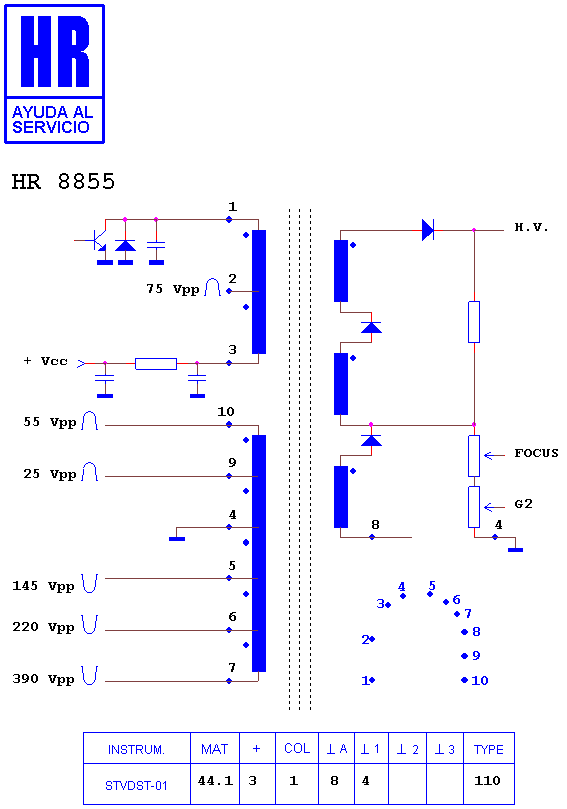

HR 8855

type ST · family 1YP · 44.1 kV maximum anode voltage · 110° deflection · 3 windings · 373 g

Manufacturer equivalents (4)

154179Q · 6174 Z 6229 L · BSC25-3602 · BSC25-3602B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8416 · HR 8624 · HR 8614 · HR 7121 · HR 8727 · HR 8771 · HR 8957 · HR 46264 · HR 6459 · HR 8539 · HR 6380 · HR 6461

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

LG - GOLDSTAR CF 25 H 30 T · LG - GOLDSTAR CF 29 H 30 · LG - GOLDSTAR CF 29 H 30 N · LG - GOLDSTAR CF 29 H 30 T · LG - GOLDSTAR CF 29 H 70 · LG - GOLDSTAR CHASIS MC 74 A · LG - GOLDSTAR CHASIS MC 74 A 25-29"
