HR 46264

31.2 kV maximum anode voltage · 110° deflection · 3 windings · 474 g

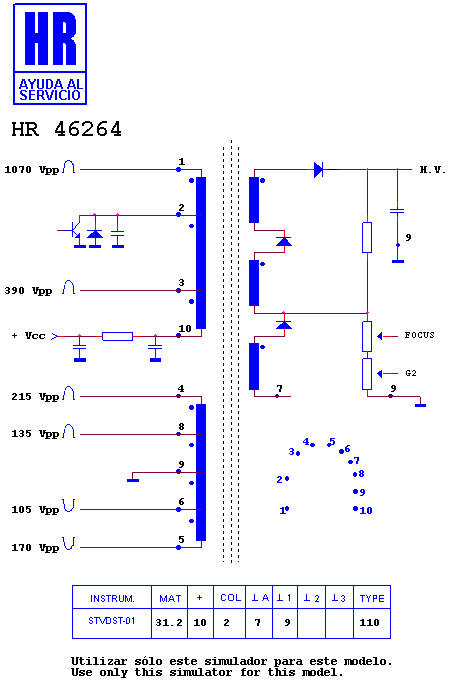

Schematic diagram for HR 46264
schematic (archived)

Manufacturer equivalents (2)

MRCFT923A · MRCFT923C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6458 · HR 6461 · HR 8539 · HR 8727 · HR 6699 · HR 6569 · HR 8962 · HR 80010 · HR 8802 · HR 8855 · HR 8624 · HR 8955

Fitted to (8)

SI MONITOR · SI MONITOR · SI SI 134 DS · SI SI 134 DS · SI SI 639 DS-R · SI SI 639 DS-R · SI VIDEO DISPLAY MONITOR · SI VIDEO DISPLAY MONITOR

Search this part in the full database
