HR 8962

33.3 kV maximum anode voltage · 110° deflection · 3 windings · 374 g

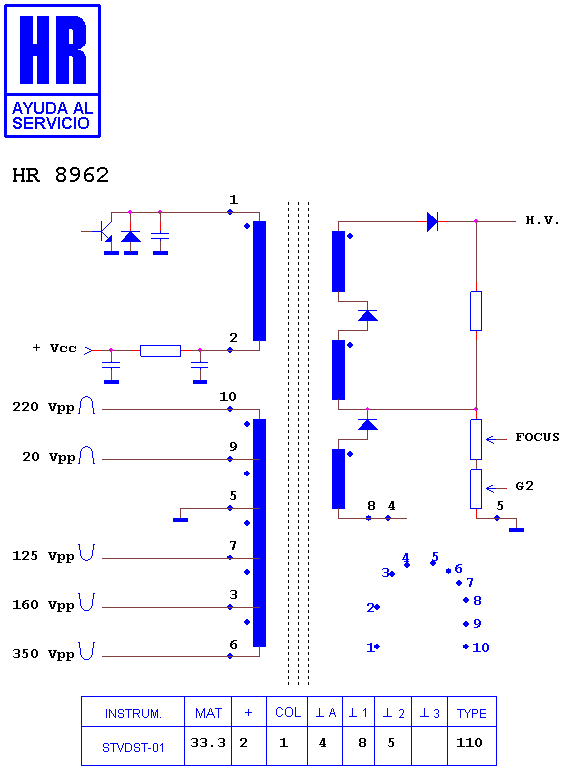

Schematic diagram for HR 8962
schematic (archived)

Manufacturer equivalents (12)

003131111 · 003313111 · 057.934EL2 · 057.934R-E2 · 057.934TR1 · 1352.5067 · 1352.5067A · 1352.5067B · 3313111 · HR 8962 · RO858 · TR858

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80090 · HR 8802 · HR 8955 · HR 6569 · HR 46264 · HR 6458

Fitted to (2)

BEKO - BEKOTEKNIK CHASIS 14.1 110 · BEKO - BEKOTEKNIK CHASIS 14.2 110
