HR 80090

33.3 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

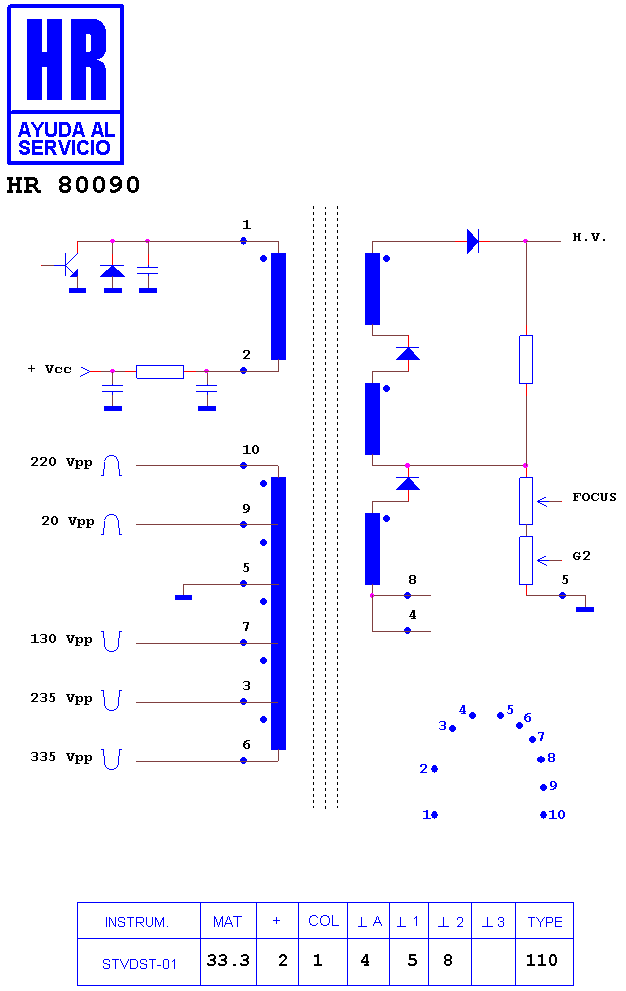

Schematic diagram for HR 80090
schematic (archived)

Manufacturer equivalents (6)

040.006EL1 · 040.006EL3 · 1352.5078 · 1352.5078C · 1352.5086 · HR 80090

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8962 · HR 5717 · HR 8955

Fitted to (1)

BEKO - BEKOTEKNIK CHASIS 14.2 24 16:9
