HR 8599

type SM · family 1YP · 25.5 kV maximum anode voltage · L° deflection · 4 windings · 410 g

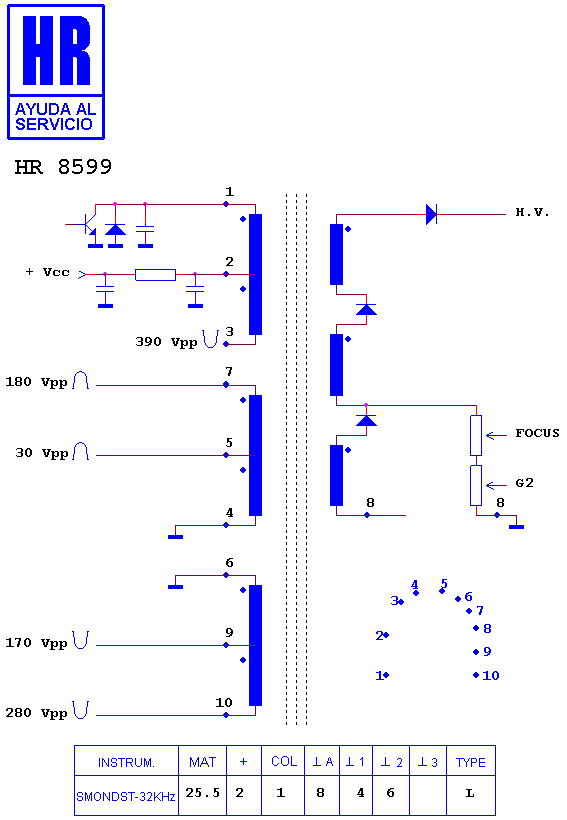

Schematic diagram for HR 8599
schematic

Manufacturer equivalents (7)

053 X 0642-001 · 053X062-4001 · 42-0719-00 · 49-0719-00 · 53 X 0624-001 · 53X0642-001 · BW 00231

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

WELLS GARDNER 25 K 5108 · WELLS GARDNER 25" · WELLS GARDNER 27 K 7401 · WELLS GARDNER MONITOR · WELLS GARDNER U 5000
