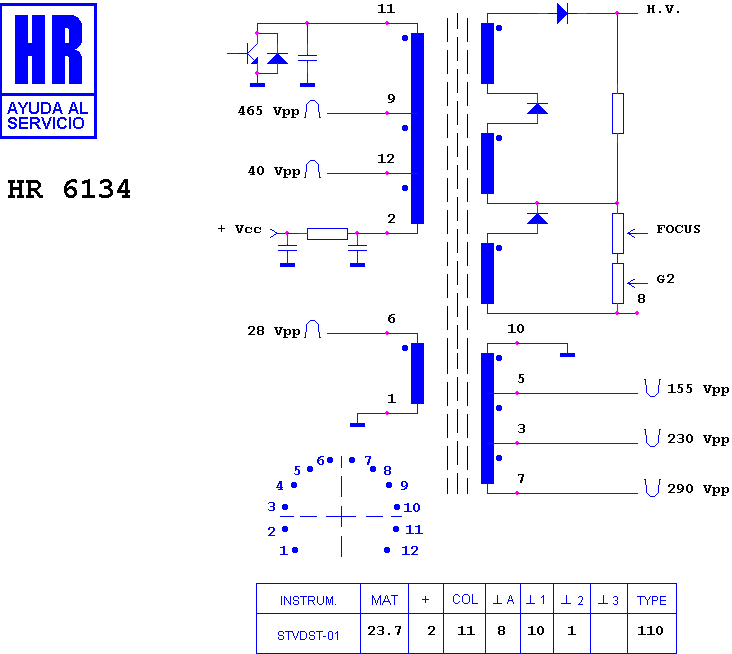

HR 6134

type ST · family 1BP1 · 23.7 kV maximum anode voltage · 110° deflection · 4 windings · 414 g

Manufacturer equivalents (16)

003331113 · 1152.5018 · 1182.5018 · 17.838 · 304468 · 473200.02 · 473200.03 · 473200.04 · 473200.05 · D 322/37 · FAT 30446 · FAT 3595 · KN 30446 · KN 3595 · RO 100 · TR 100

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7270 · HR 8955 · HR 8599

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

ELBE 2501 MD · ELBE 2590 MD · ELBE CHASIS E 10 · ELBE CHASIS E 10 D · ELBE CHASIS E 10 MD · ELBE TVC 2270 · ELBE TVC 2670
