HR 7300

25.2 kV maximum anode voltage · 110° deflection · 3 windings · 300 g

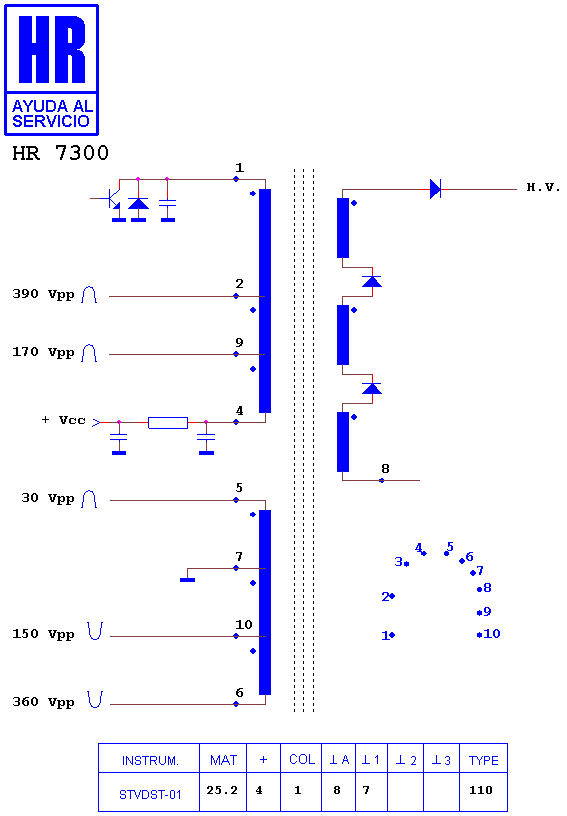

Schematic diagram for HR 7300
schematic (archived)

Manufacturer equivalents (10)

14017035 · 38780 · 38781 · 38782 · 38783 · 38784 · 480614017035 · AT2079/B2 · FAT30248 · KN30248

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8005 · HR 8955 · HR 8802

Fitted to (1)

PHILIPS 17 BL 2022
