HR 8005

type ST · family 1AP1 · 26.4 kV maximum anode voltage · 110° deflection · 4 windings · 366 g

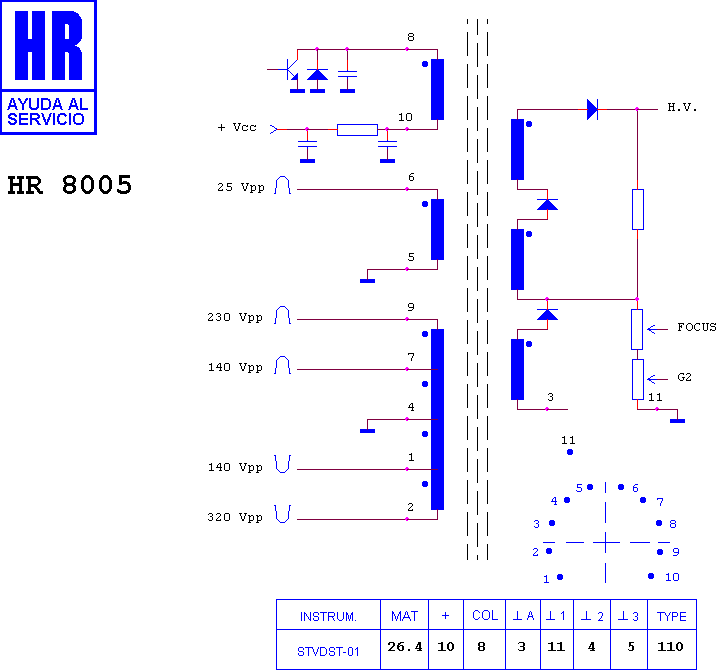

Schematic diagram for HR 8005
schematic

Manufacturer equivalents (16)

003311194 · 003311195 · 103726.90 · 103773.40 · 105327.50 · 40330-22 · 40330-35 · AFS 294 · F36N.3015 · FAT30955 · HR 8005 · M12-165 · M12-166 · PET32-C8 · RO056 · TR056

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80098 · HR 8955 · HR 6385 · HR 6620 · HR 8802 · HR 7076 · HR 7300 · HR 7130 · HR 7191 · HR 6097

Fitted to (1)

TRILUX TAP 253 X
