HR 6097

type ST · family 1IS1 · 21.6 kV maximum anode voltage · 110° deflection · 3 windings · 406 g

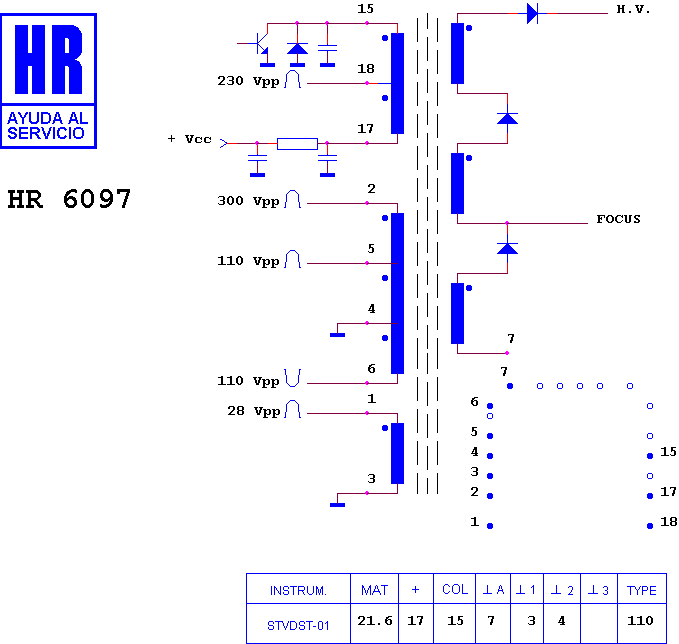

Schematic diagram for HR 6097
schematic

Manufacturer equivalents (21)

003150101 · 138 36600 · 240120.4031 · 243.2987 · 3122 138 36600 · 3122 138 36602 · 35600 · 35601 · 35602 · 35603 · 35604 · 35605 · 36600 · 36601 · 36602 · 36603 · 36604 · 36605 · RO 049 · RO 49 · TR 049

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7130 · HR 7862 · HR 7191 · HR 8802 · HR 6058 · HR 8005 · HR 6478 · HR 6145

Fitted to (3)

PHILIPS 22 CT 6033 · PHILIPS CHASIS CTO 26" · PHILIPS CT 6033-62 T
