HR 8802

48 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

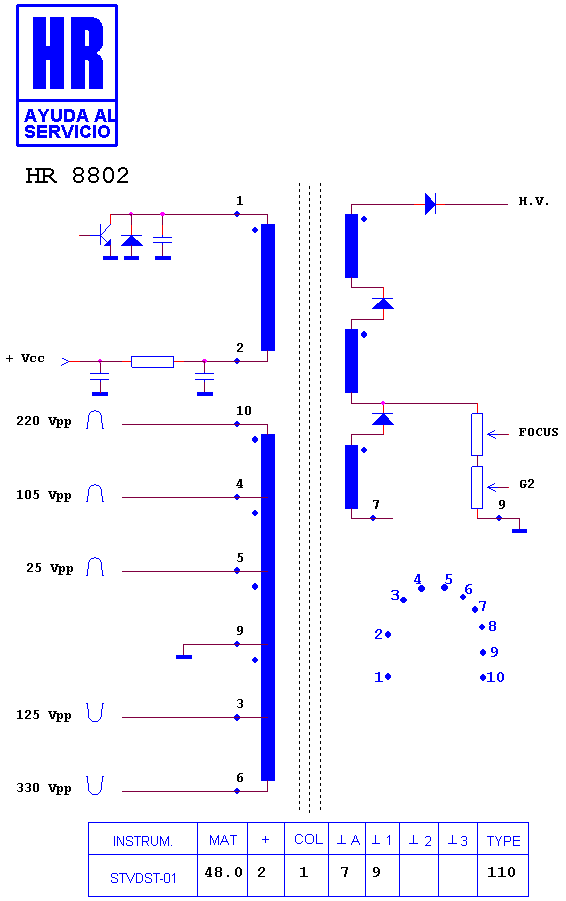

Schematic diagram for HR 8802
schematic (archived)

Manufacturer equivalents (1)

6174Z6002K

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8959 · HR 8962 · HR 8891 · HR 5712 · HR 6569 · HR 6699 · HR 6458 · HR 8955 · HR 6461 · HR 6097 · HR 8005 · HR 6478

Fitted to (5)

FORMENTI - ADMIRAL T 294 A · GOLDSTAR - LG CHASIS MC 019 A · GOLDSTAR - LG CT 21 Q 65 KE · GOLDSTAR - LG CT 29 H 32 E · SANSUI SC 2901

Search this part in the full database
