HR 8959

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 374 g

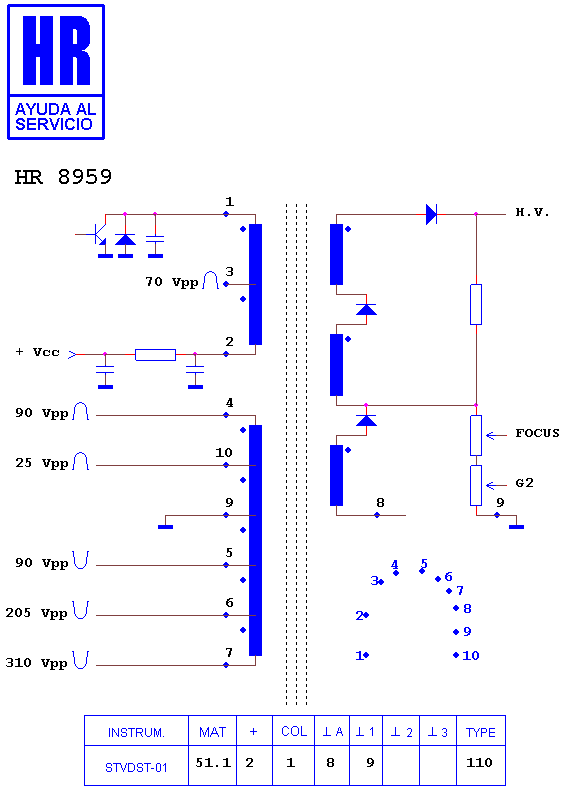

Schematic diagram for HR 8959 — schematic (archived)

Manufacturer equivalents (2)

HR 8959 · PET40-07BH

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80067 · HR 8802 · HR 8891 · HR 6012 · HR 6209 · HR 8542 · HR 6149 · HR 80082 · HR 8963
