HR 6395

type ST · family 1AP1 · 18.9 kV maximum anode voltage · 90° deflection · 4 windings · 334 g

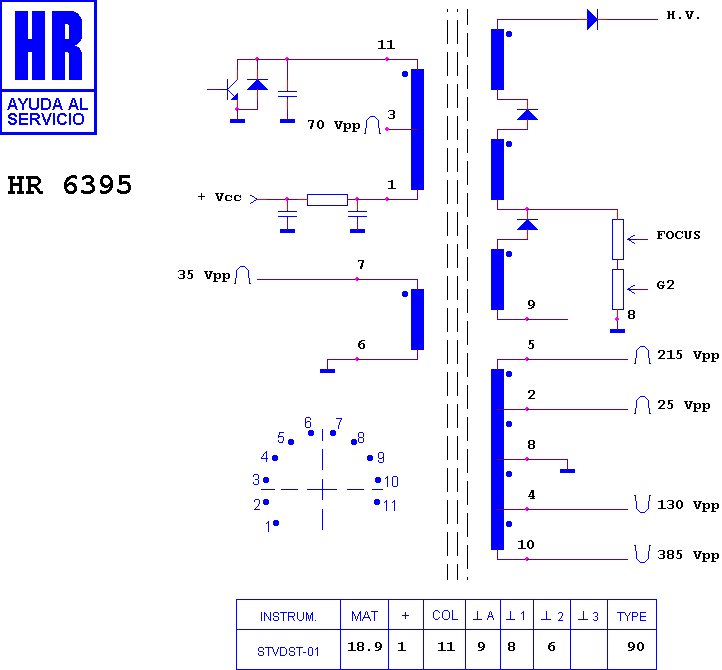

Schematic diagram for HR 6395
schematic

Manufacturer equivalents (3)

F 1252 CE · RTRNF1252CEZZ · Z4033

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6266 · HR 7259 · HR 6016 · HR 80019 · HR 7620

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

PHILCO 20 C 58 CN · SHARP 2000 · SHARP 2000 Y

Search this part in the full database
