HR 8891

51.1 kV maximum anode voltage · 110° deflection · 5 windings · 408 g

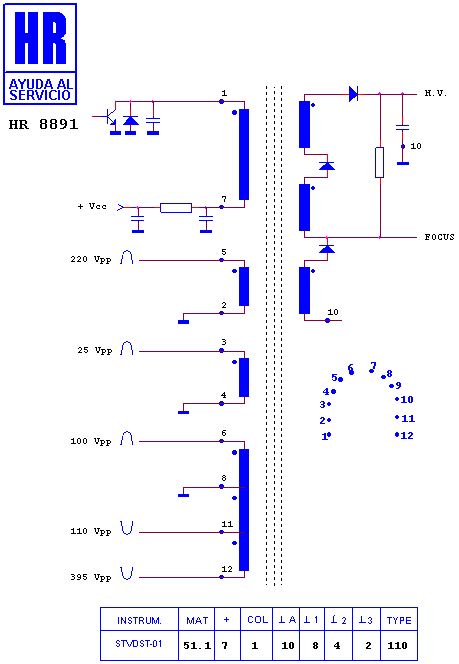

Schematic diagram for HR 8891
schematic (archived)

Manufacturer equivalents (4)

1372.9018 · 1372.9018A · 45360083 · HR 8891

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8959 · HR 8802 · HR 6178 · HR 6699 · HR 6458 · HR 6197 · HR 6461 · HR 6569 · HR 8955

Fitted to (2)

FINLUX CHASIS MC 2 B 28 FST · NOKIA - ITT CHASIS MC 2 B 28 FST
