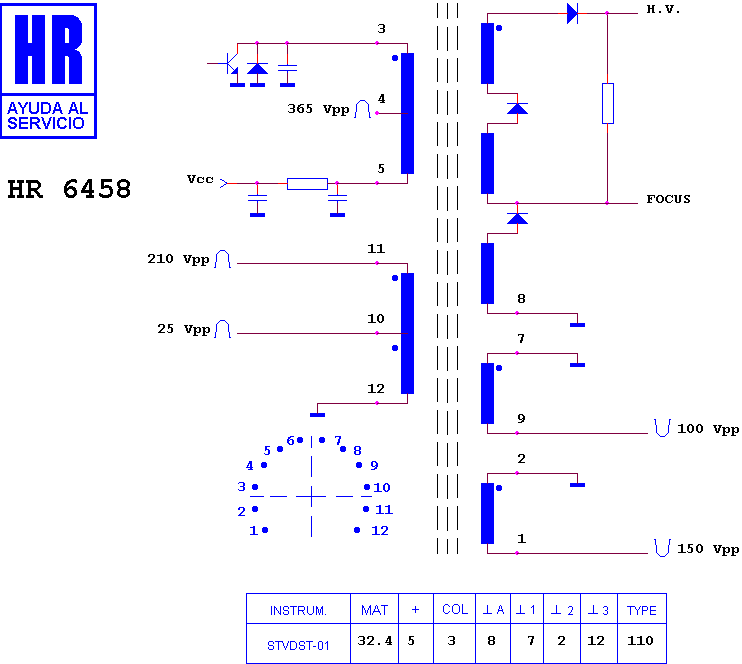

HR 6458

type ST · family 1BS1 · 32.4 kV maximum anode voltage · 110° deflection · 4 windings · 386 g

Manufacturer equivalents (5)

100796.50 · 309 311 011 · 40308-31 · 534 TX 0301 · FAT 30565

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6461 · HR 7270 · HR 8727 · HR 7121 · HR 8891 · HR 46264 · HR 6459 · HR 6699 · HR 8802 · HR 7221 · HR 6420 · HR 8855

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16529 — Focus control

Fitted to (21)

NORDMENDE 7.262 PIP · NORDMENDE FUTURA SOUND · NORDMENDE FUTURA SOUND 63 TD · NORDMENDE FUTURA SOUND 72 TD · NORDMENDE PRESTIGE 72 TD · NORDMENDE SL 63 TD · NORDMENDE SL 72 TD · NORDMENDE SL 7261 · TELEFUNKEN 1 · TELEFUNKEN 335 PIP · TELEFUNKEN CINEVISION · TELEFUNKEN PALCOLOR SM · TELEFUNKEN SM 335 PIP · THOMSON 70 MXC 95 N · THOMSON 70 MXC 96 · THOMSON 70 MXC 96 L · THOMSON 70 MXC 97 · THOMSON 70 MXC 97 DL · THOMSON 70 MXC 98 · THOMSON 70 MXC 99 · THOMSON 70 MXC 99 DSL
