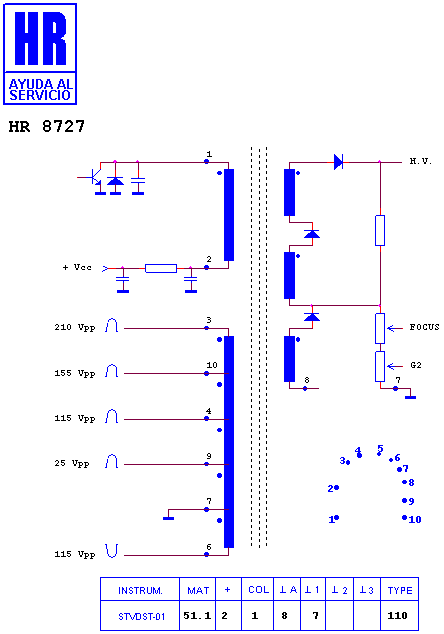

HR 8727

type ST · family 1VP2 · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

Manufacturer equivalents (8)

1372.0078 · 1372.0078 B · 1372.00782 · 1372.00782 A · 50 H 0000238 · 50 H 0000258 · BSC 29-0125 D · HR 8727

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7992 · HR 80067 · HR 6459 · HR 7121 · HR 46264 · HR 6461 · HR 6458 · HR 80010 · HR 6699 · HR 6420 · HR 8855 · HR 8416

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

DAEWOO CHASIS CP 822 F · DAEWOO DTA 32 W 9 E · DAEWOO DTA 32 W 9 K · DAEWOO DTA 3220 · DAEWOO DTA 3270 K
