HR 80098

33.3 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

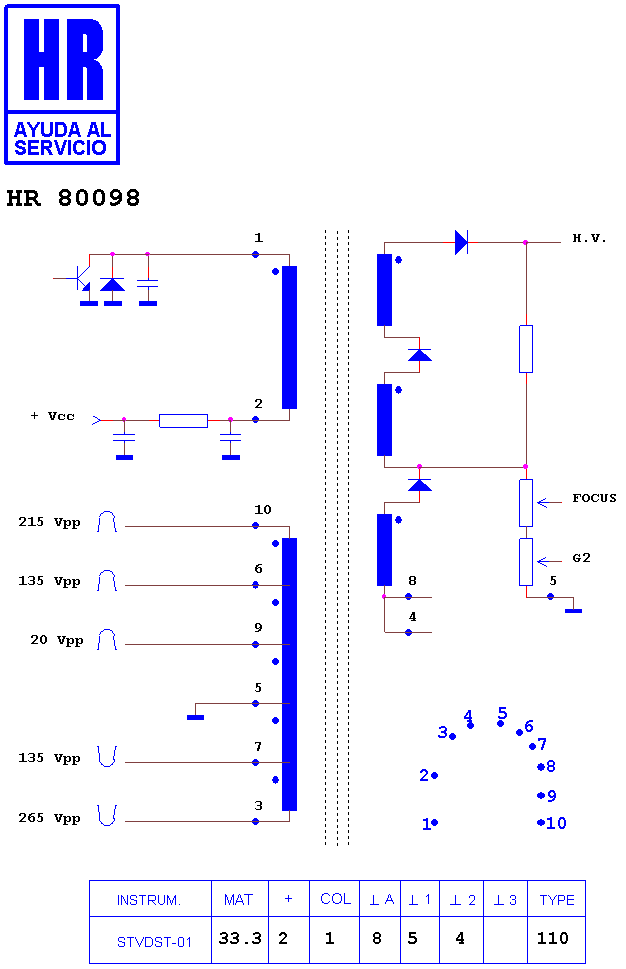

Schematic diagram for HR 80098
schematic (archived)

Manufacturer equivalents (31)

003313124 · 003313137 · 003323106 · 040.017EL2 · 040.017EL3 · 040.017R-E2 · 040.017R-E3 · 040.017R-EL2 · 040.017R-J1 · 040.017R-J2 · 040.017R-T1 · 040.017R-T2 · 040.017R-T3 · 040.017TR1 · 040.017TR3 · 1352.5088 · 1352.5088A · 1372.0126 · 1372.0126B · 3323106 · 75955.107.85 · 75955.107.8500 · 75955.124.1800 · HR 80098 · JF0501-19576 · RO875 · RO902 · RO934 · TR875 · TR902 · TR934

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7987 · HR 80042 · HR 8506 · HR 8294 · HR 7982 · HR 80024 · HR 80063 · HR 8336 · HR 7076 · HR 5717 · HR 5727 · HR 6385

Fitted to (2)

BEKO - BEKOTEKNIK CHASIS 14.5 · BEKO - BEKOTEKNIK CHASIS C 8
