HR 80055

16.9 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

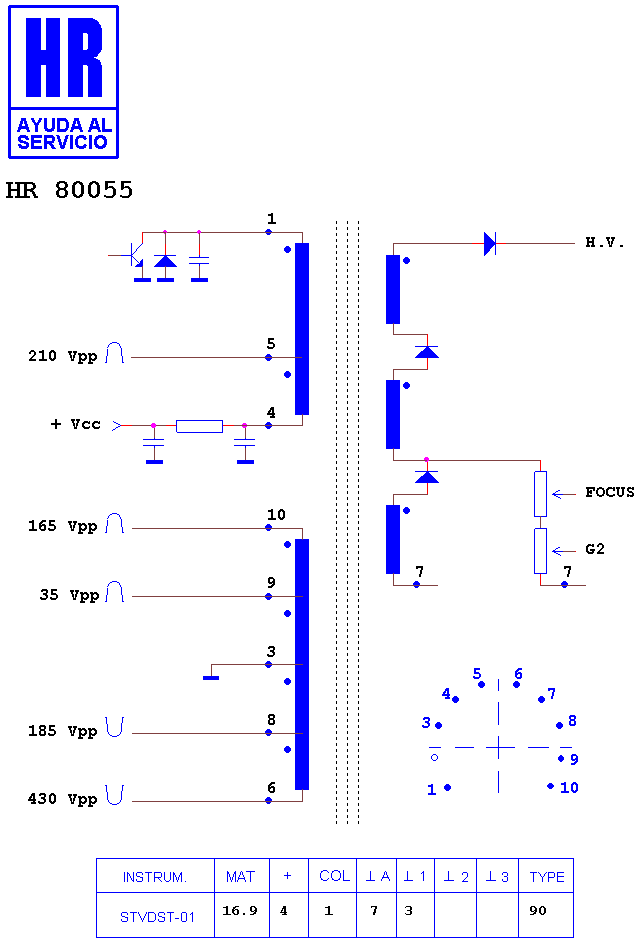

Schematic diagram for HR 80055
schematic (archived)

Manufacturer equivalents (7)

4123 · B323423 · B323423001 · B323423001000 · FAT30589 · TFB3423 · TVC/45

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7637

Fitted to (4)

PHILCO TVC 100 · SEMP TOSHIBA TVC 100 · TOSHIBA 100 · TOSHIBA TVC 100
