HR 8539

type ST · family 1VP · 31.5 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

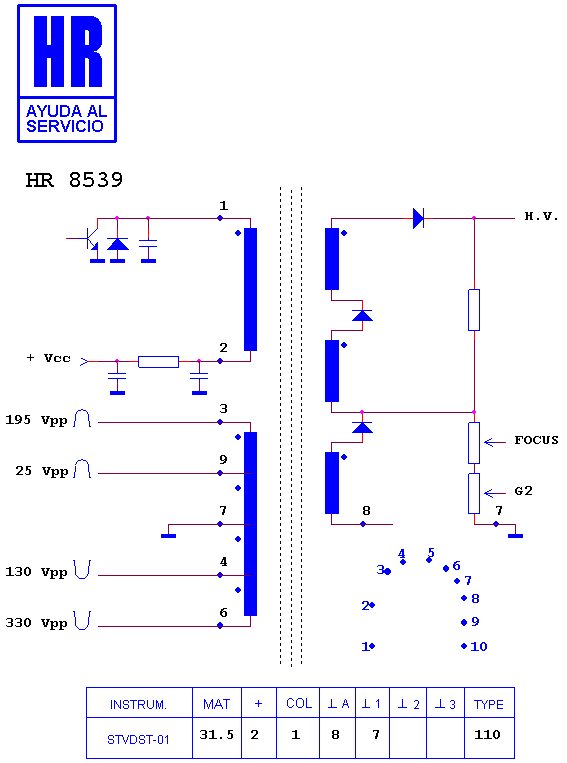

Schematic diagram for HR 8539
schematic

Manufacturer equivalents (5)

1352.5052 · 1352.5052A · 50 H 0000216 · FAT30822 · HR 8539

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80111 · HR 80014 · HR 8855 · HR 8828 · HR 8725 · HR 80306 · HR 7951 · HR 6535 · HR 8456 · HR 46264 · HR 8523 · HR 6101

Fitted to (3)

DAEWOO CHASIS CP 795 · DAEWOO DT 29 G 3 · DAEWOO DWP 28 W 2 GB
