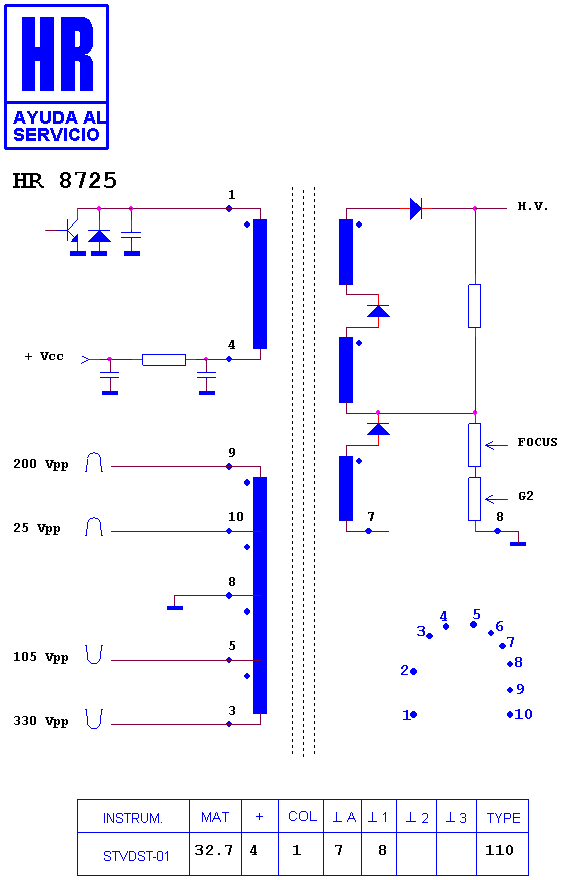

HR 8725

32.7 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

Manufacturer equivalents (4)

1362.5024 · 1362.5024A · 50H0000242 · HR 8725

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8828 · HR 80306 · HR 8523 · HR 8914 · HR 6422 · HR 80035 · HR 6391 · HR 80111 · HR 8539

Fitted to (1)

DAEWOO WP 895 F
