HR 8546

type ST · family 1VP · 21.1 kV maximum anode voltage · 90° deflection · 3 windings · 408 g

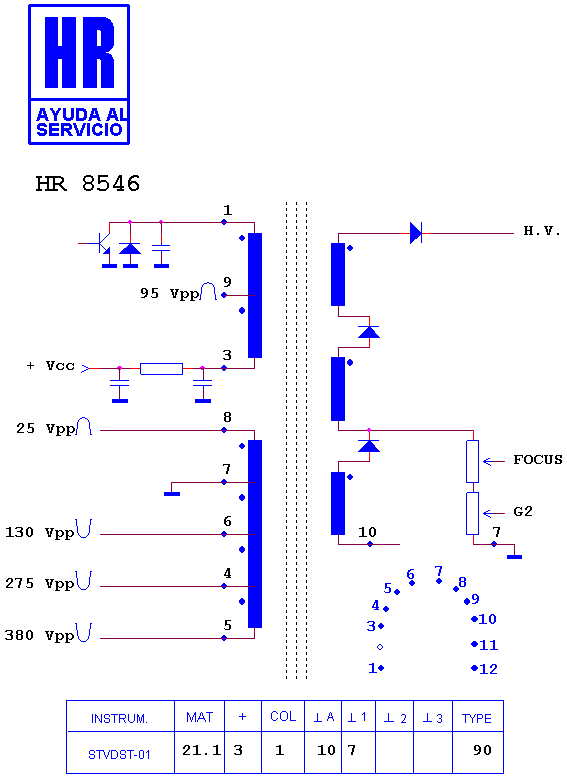

Schematic diagram for HR 8546
schematic

Manufacturer equivalents (5)

1342.0044 · 1342.0044 B · 1342.0044A · 30014178 · HR 8546

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7040 · HR 8236

Fitted to (1)

VESTEL CHASIS 11 AK 19 SA
