HR 80191

25.5 kV maximum anode voltage · L° deflection · 3 windings · 400 g

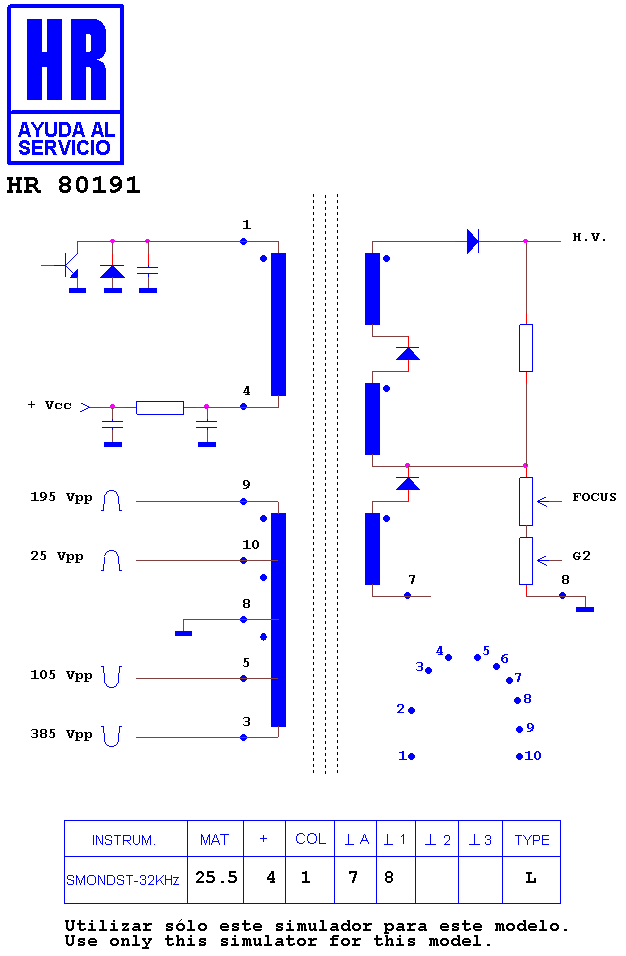

Schematic diagram for HR 80191
schematic (archived)

Manufacturer equivalents (3)

1362.5039 · 1362.5039A · 50H0000260

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80304 · HR 80307 · HR 8218 · HR 7179

Fitted to (6)

DAEWOO CHASIS CP 830 F · DAEWOO DTH 29 G 2-100 D · DAEWOO DTH 29 U 7 K-100 D · JVC AV 29 FH 1 SUG · JVC AV 29 SH 1 SUG · JVC CHASIS CP 830 F
