HR 80304

25.7 kV maximum anode voltage · L° deflection · 3 windings · 400 g

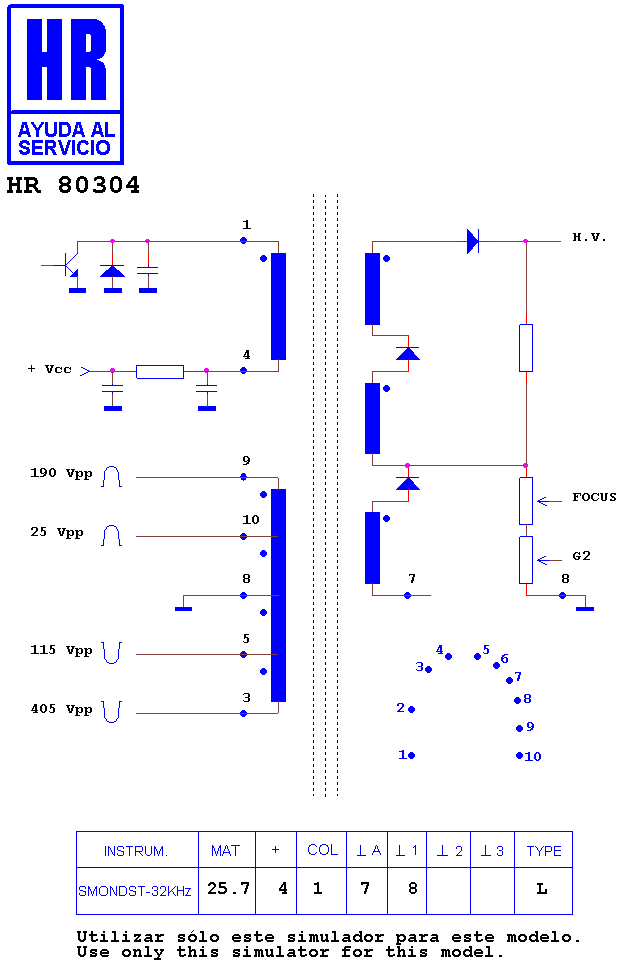

Schematic diagram for HR 80304
schematic (archived)

Manufacturer equivalents (3)

1362.5041 · 1362.5041A · 50H0000262

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80307 · HR 80191 · HR 7179 · HR 8218

Fitted to (3)

DAEWOO 72 FTMS · DAEWOO DTH 29 U 7 K-100 · DAEWOO DTH 29 U 7 K-100 D
