HR 8236

type ST · family 1XP1 · 17.5 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

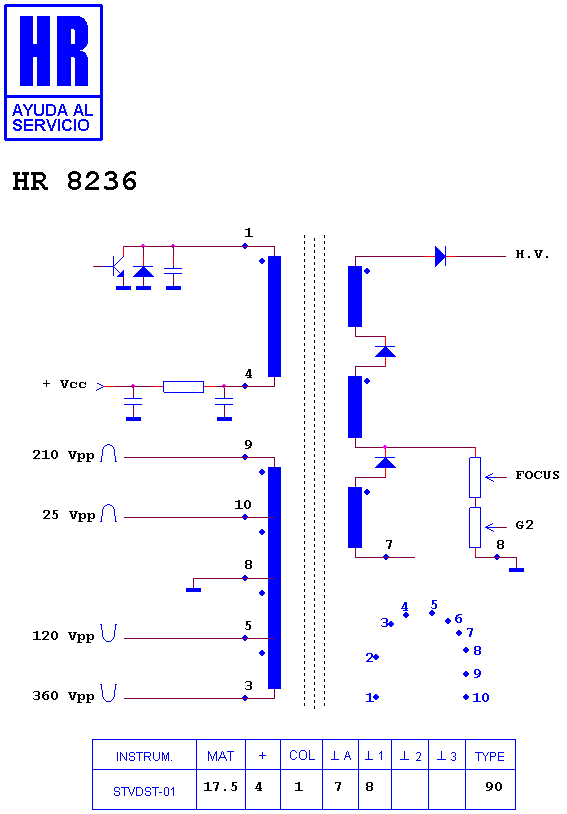

Schematic diagram for HR 8236
schematic

Manufacturer equivalents (5)

1342.0040 · 1342.0040 B · 1342.0040A · 50 H 0000225 · HR 8236

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80274 · HR 7040 · HR 6363 · HR 7347 · HR 8546

Fitted to (1)

DAEWOO CHASIS SC 130
