HR 80274

18.6 kV maximum anode voltage · 90° deflection · 3 windings · 400 g

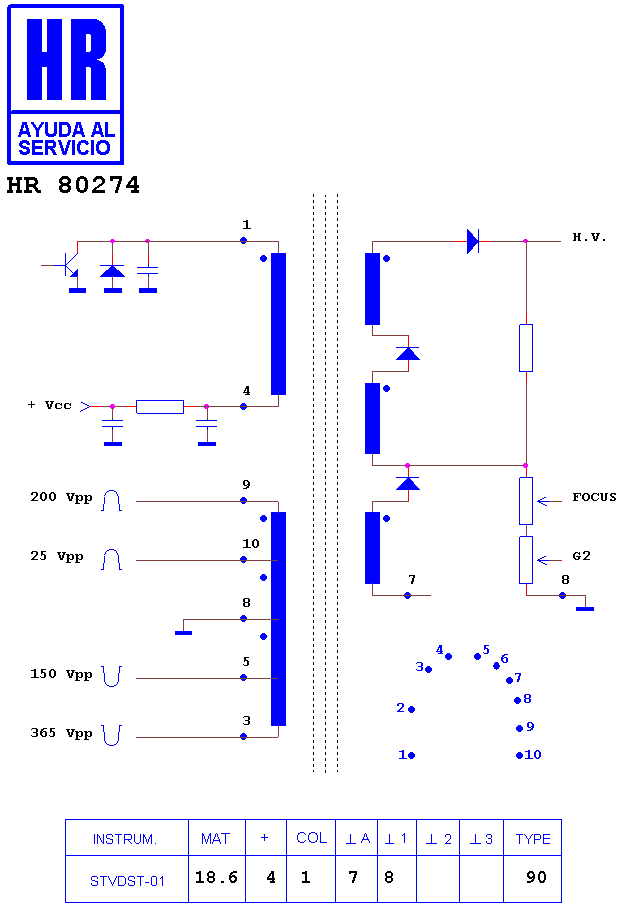

Schematic diagram for HR 80274
schematic (archived)

Manufacturer equivalents (3)

1362.5067 · 1362.5067D · 50H0000312

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8236 · HR 7679 · HR 7463 · HR 7040 · HR 7347 · HR 8152 · HR 8493 · HR 6363

Fitted to (2)

DAEWOO CHASIS CP 650 29 SUPER SLIM · DAEWOO CHASIS CP 830 F 29 SUPER SLIM

Search this part in the full database
