HR 7347

type ST · family 1AP2 · 18.6 kV maximum anode voltage · 90° deflection · 4 windings · 324 g

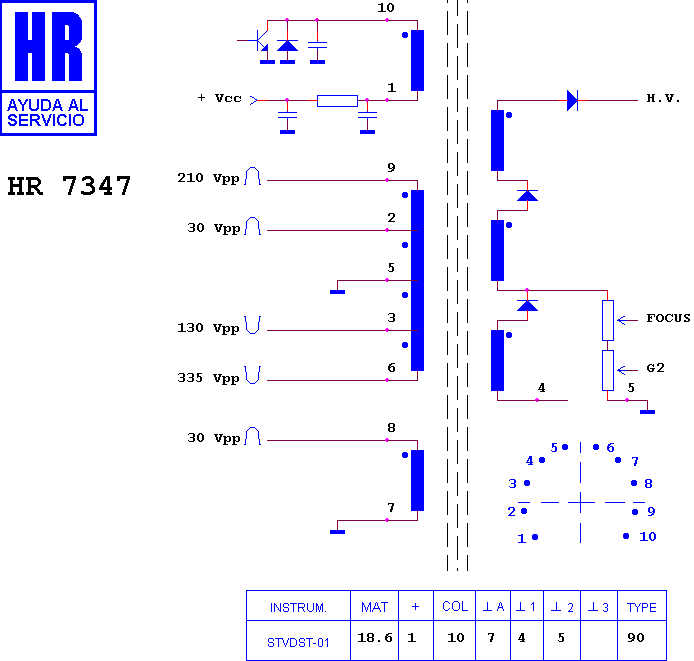

Schematic diagram for HR 7347
schematic

Manufacturer equivalents (8)

0036 4088 0001 · 00364088-0003 · 364088-0001 · 364088-0003 · 364088-1 · 4835 140 67099 · 483514067054 · 483514067105

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7976 · HR 8043 · HR 6091 · HR 8289 · HR 80274 · HR 7143 · HR 7331 · HR 6153 · HR 7332 · HR 8236 · HR 6363

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
