HR 7143

type ST · family 1NP1 · 21.8 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

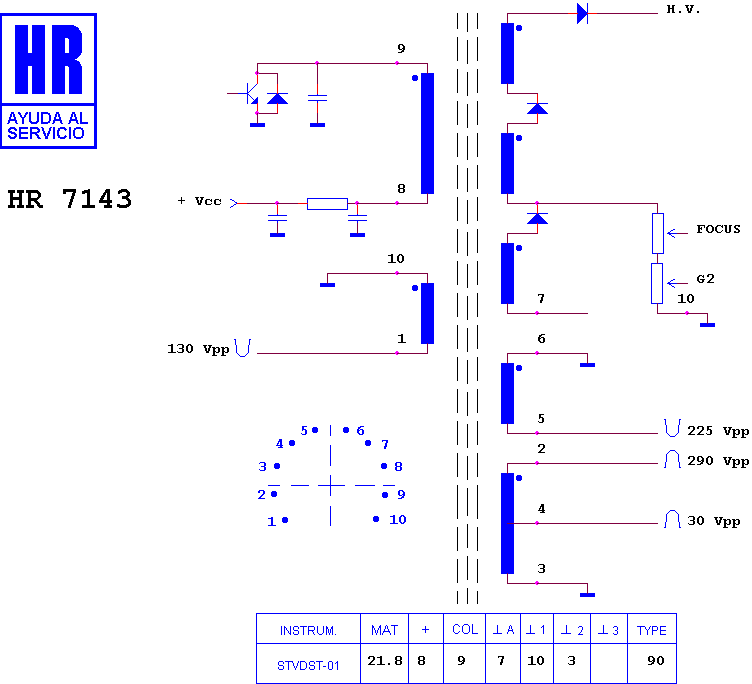

Schematic diagram for HR 7143
schematic

Manufacturer equivalents (1)

HR 7143

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7198 · HR 7234 · HR 7126 · HR 7233 · HR 7583 · HR 7176 · HR 8289 · HR 8819 · HR 8114 · HR 7777 · HR 7428 · HR 7167

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
