HR 7233

type ST · family 1AP1 · 21.4 kV maximum anode voltage · 90° deflection · 4 windings · 347 g

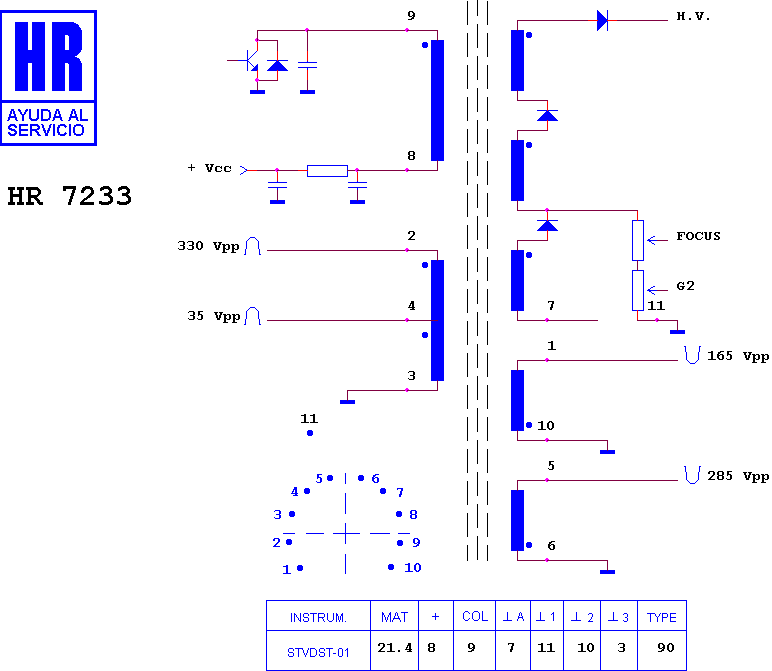

Schematic diagram for HR 7233
schematic

Manufacturer equivalents (6)

241.067 · 309 311 968 · 473200.00 · 4900 079 480 · 534 TX 0328 · 84230282

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7126 · HR 7143 · HR 7129 · HR 7176 · HR 8136 · HR 7184 · HR 7145 · HR 7510 · HR 6091 · HR 8289 · HR 7800 · HR 7113

Fitted to (14)

TELEFUNKEN 212 STEREO · TELEFUNKEN 212 VT · TELEFUNKEN 282 VT · TELEFUNKEN 282 VT NIC · TELEFUNKEN 350 NV · TELEFUNKEN CHASIS 418 A STEREO · TELEFUNKEN P 350 NV · TELEFUNKEN PALCOLOR P · TELEFUNKEN PALCOLOR SN · TELEFUNKEN PALCOLOR SP · TELEFUNKEN SN 282 VT · TELEFUNKEN SN 282 VT NIC · TELEFUNKEN SP 212 VT · THOMSON TS 5171 N
