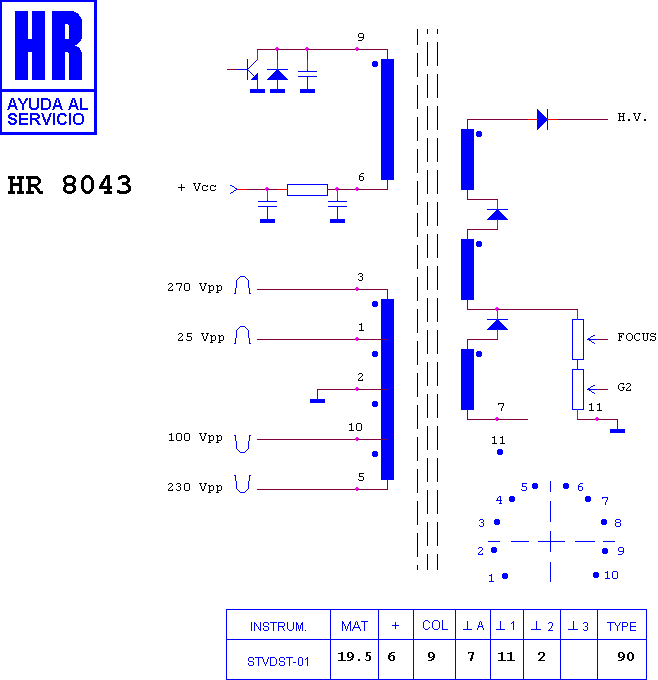

HR 8043

type ST · family 1NP1 · 19.5 kV maximum anode voltage · 90° deflection · 3 windings · 276 g

Manufacturer equivalents (1)

051.764

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8051 · HR 8041 · HR 8961 · HR 8880 · HR 6091 · HR 7594 · HR 7241 · HR 7198 · HR 7167 · HR 7173 · HR 8136 · HR 7184

Fitted to (1)

BEKO - BEKOTEKNIK CHASIS 12.1
