HR 7241

type ST · family 1AP1 · 20.6 kV maximum anode voltage · 90° deflection · 5 windings · 347 g

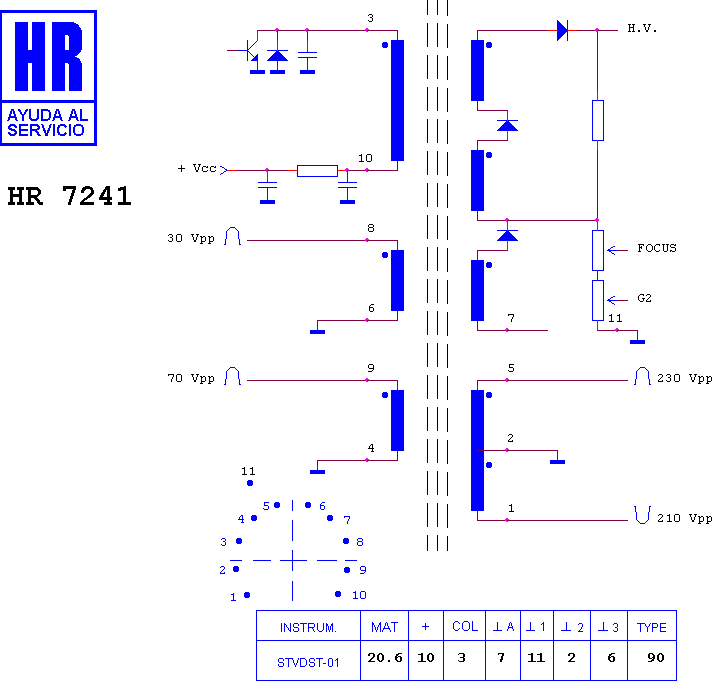

Schematic diagram for HR 7241
schematic

Manufacturer equivalents (12)

003311147 · 094-01077/0.9 · 094-01077/1.7 · 094-01077/2.5 · 94-01077/0.9 · 94-01077/1.7 · 94-01077/2.5 · FAT30525 · HR 7241 · HR 7241-11 · KN30525 · M12-117

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7186 · HR 8021 · HR 7038 · HR 7097 · HR 8041 · HR 7157 · HR 7185 · HR 6286 · HR 8378 · HR 7529 · HR 6394 · HR 7594

Fitted to (2)

SANYO CEP 2170 · SANYO CHASIS EC 1 LC 21" TUB. TOSHIB
