HR 7186

type ST · family 1AP1 · 23.5 kV maximum anode voltage · 90° deflection · 4 windings · 336 g

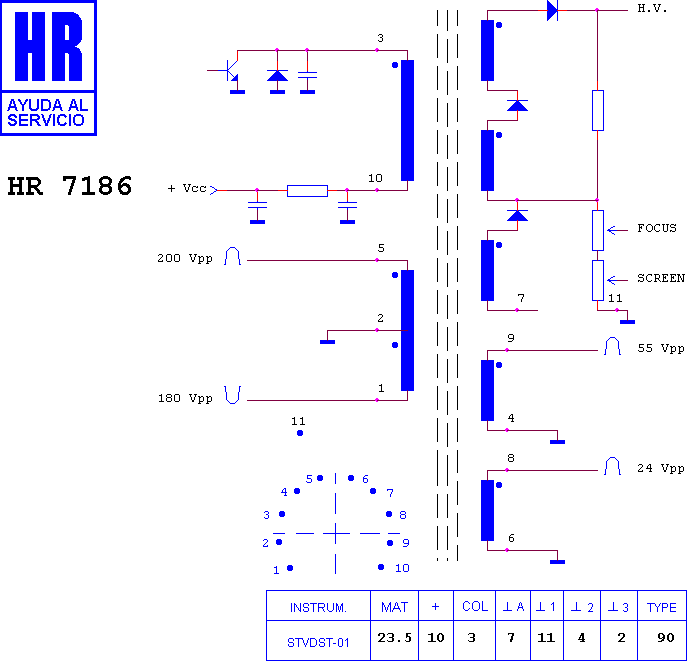

Schematic diagram for HR 7186
schematic

Manufacturer equivalents (17)

003311146 · 094-01062/0.6 · 094-01062/1.4 · 094-01062/2.2 · 094-01079/0.7 · 1352.3028 · 94-01062/0.6 · 94-01062/1.4 · 94-01062/2.2 · 94-01079/0.7 · FAT30524 · HR 7186 · HR 7186-00 · HR 7186-01 · HR 7186-03 · KN30524 · M 12-116

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7241 · HR 8021 · HR 7213 · HR 6286 · HR 7185 · HR 8448 · HR 7784 · HR 7529 · HR 8041 · HR 7133 · HR 7157 · HR 8341

Fitted to (7)

SANYO C 2170 TX · SANYO C 2180 TX · SANYO CEP 2170 · SANYO CEP 2197 · SANYO CEP 2197 TXT · SANYO CHASIS EC 1 21" TUB. SAMSUNG · SANYO CHASIS EC 1 LC 21" TUB. VIDEOC
