HR 6231

type ST · family 1BP1 · 29.1 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

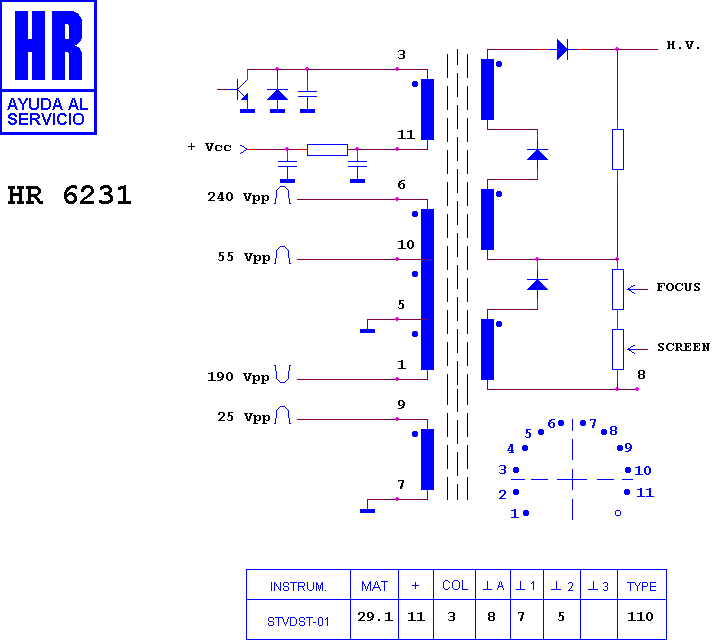

Schematic diagram for HR 6231
schematic

Manufacturer equivalents (9)

094-01047/0.6 · 094-01047/1.4 · 094-01047/2.2 · 94-01046/0.6 · 94-01046/1.4 · 94-01046/2.2 · HR 6231-00 · HR 6231-01 · HR 6231-02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6238 · HR 6299 · HR 6370 · HR 6246 · HR 6073 · HR 7390 · HR 8073 · HR 8990 · HR 6234 · HR 8857 · HR 6703 · HR 8459

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SANYO CHASIS ED 0 110§
