HR 6633

type SM · family 1BS1 · 18.5 kV maximum anode voltage · H° deflection · 3 windings · 367 g

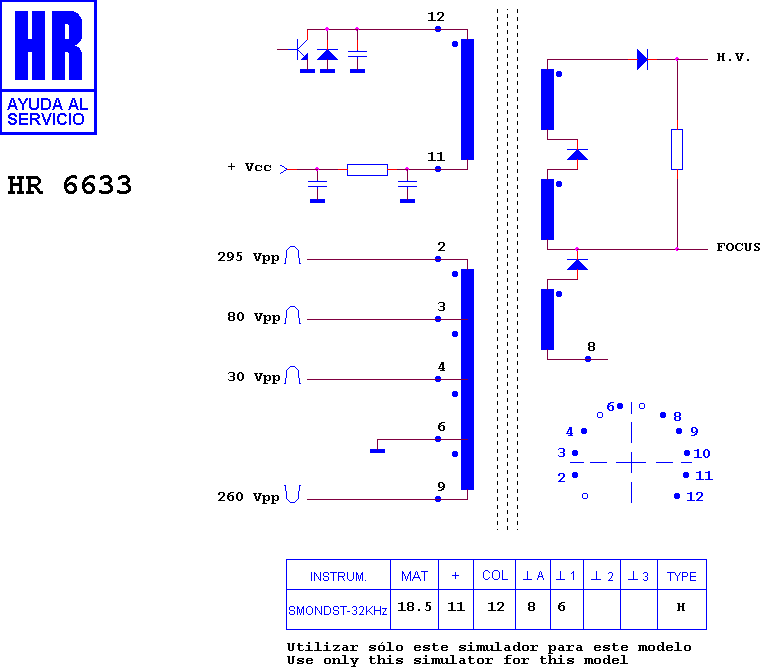

Schematic diagram for HR 6633
schematic

Manufacturer equivalents (12)

114260470 · 1182.6047 · 1182.60470 · 1182.6047A · 26779 · 26779.051 · 276-26779 · 276-26779.050 · 276-26779.051 · FAT30541 · HR 6633 · KN30541

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80139

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

LOEWE / LOEWE-OPTA ARCADA 8684 ZP · LOEWE / LOEWE-OPTA CHASIS Q 2100 · LOEWE / LOEWE-OPTA CHASIS Q 2200
