HR 8468

type ST · family 1XP1 · 19.9 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

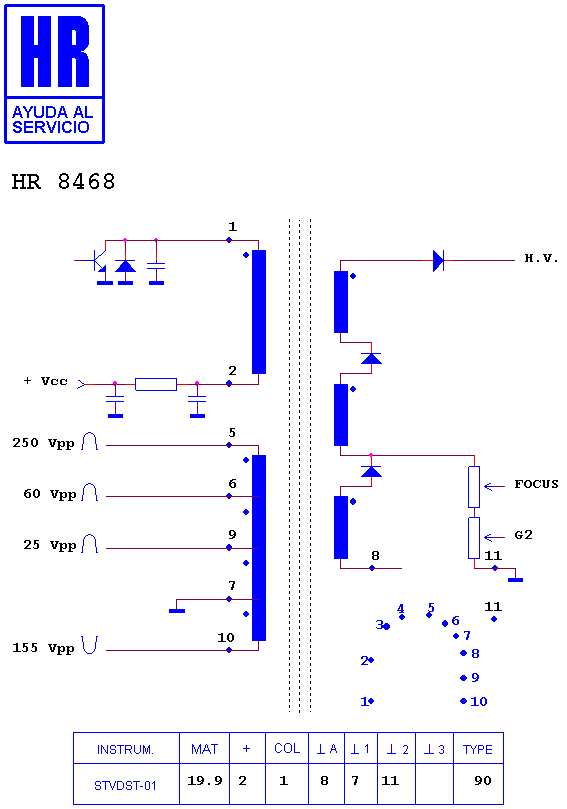

Schematic diagram for HR 8468
schematic

Manufacturer equivalents (34)

1142.5094 · 1142.5094 D · 3210 878 7901 B · 3210 878 79011 · 3210 878 79018 · 3210 908 15017 · 3210 908 15041 · 3210 E 2237-01-4 · 3210 G09 40018 · 3210-87879 · 3210-87879-01 · 3210-87879-011 B · 3210-87879-0118 · 3210-E2234-01-4 · AT 2094/D1 · AT 2094/D1-6 · AT 2094/D1-C · B 32 1090 815 041 · DV 2094/D1 · HR 8468 · JF 0501-19192 A · KT 3013 · OV 2094-08272 · OV 2094/D1 · OV 2094/D1 A · OV 2094/D1 B · OV 2094/D1 C · OV 2094/D1 H · OV 2094/D1 I · OV 2094/D1 L · OV 2094/D1 N · OV 2094/D1-0 · OV 2094/D4 · TVC/201

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8688 · HR 8448 · HR 7386 · HR 8381 · HR 8481 · HR 6231 · HR 8451 · HR 8122 · HR 8041 · HR 8537 · HR 7594 · HR 7353

Fitted to (34)

ITAUTEC PCR 1447 · ITAUTEC PCR 1449 · ITAUTEC PCR 2048 · ITAUTEC PCR 2049 · PHILCO 14 C 82 RC · PHILCO CHASIS CPH · PHILCO CHASIS CPH 06 M · PHILCO CHASIS CPH 061 · PHILCO CP 01 R 0 · PHILCO CPH 06 · PHILCO CPH 06 M · PHILCO CPH 061 · PHILCO CPH 14 · PHILCO CPH 20 · PHILCO PC 2060 · PHILCO PCF 2050 · PHILCO PCF 2060 · PHILCO PCM 1448 · PHILCO PCM 1451 · PHILCO PCM 1456 · PHILCO PCM 2048 · PHILCO PCM 2051 · PHILCO PCM 2056 · PHILCO PCR 1447 · PHILCO PCR 1449 · PHILCO PCR 2047 · PHILCO PCR 2049 · PHILCO PCR 247 · PHILCO PCS 2050 · PHILCO PCS 2060 · PHILCO TP 2052 N · PHILCO TP 2054 · PHILIPS 14 PT 1354 · PHILIPS 14 PT 1354/58
